SKU:
CN C-AA46620001
€ 17.888,73
1-2 weeks delivery time
-
+
The Craftsman CM4.65 Diesel Engine with keel cooling and gearbox TM345 offers the same core features as the previous model but includes the TM345 gearbox for enhanced versatility. It delivers 48 kW/65 HP with a 4-cylinder Hyundai engine, producing 175 Nm of torque. The engine uses keel cooling, a 110 A alternator, and includes flexible engine mounts. It has a 15° max installation angle and weighs 235 kg, with a 76 mm exhaust diameter.
- Description
- Ask a Question
-

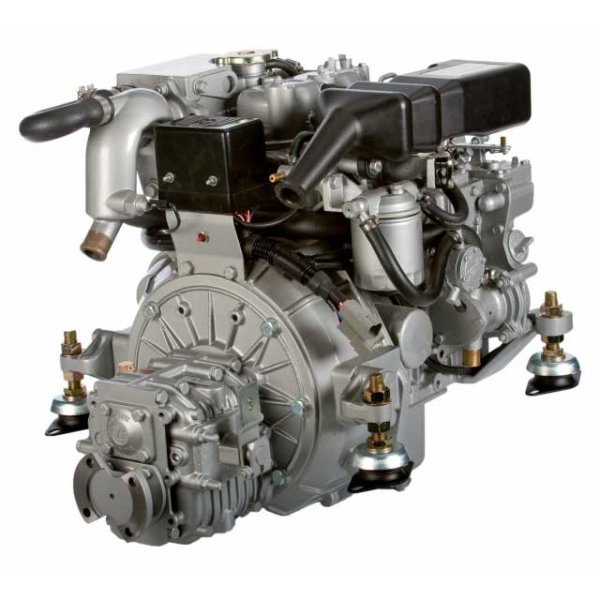

Craftsman CM4.65 Diesel Engine, Keel Cooling, Gearbox TM345
This engine provides similar features with the addition of a gearbox for improved performance. Below are its specifications:
- Basic Engine: Hyundai
- Cylinders: 4 In Line
- Cylinder Capacity: 2.607 cm³
- Power: 48 kW / 65 hp
- Max. Engine Speed: 3,000 rpm
- Max. Torque: 175 Nm
- Aspiration: Natural
- Alternator: 110 A / 12 V (Bosch / SEG)
- Flexible Engine Mounts: CM Type 7
- Calorifier Connection: Standard
- Exhaust Diameter: ø76 mm (ø60 mm optional)
- Electronic Protection: 10 A Circuit Breaker
- Stop Solenoid: Energized To Run
- Max. Installation Angle: 15° (Backwards)
- Weight: 235 kg
- Refrigeration: Keel cooling
- Gearbox: TM345
-
