SKU:
CN C-AA45200001
€ 12.168,73
1-2 weeks delivery time
-
+
The Craftsman CM4.52 Diesel Engine with keel cooling provides similar performance as the intercooler model but uses keel cooling for its refrigeration system. It delivers 38.9 kW/52 HP output with turbocharging and a 105 Nm torque, featuring 4 cylinders and indirect cooling. The engine also includes a 90 A alternator and flexible mountings but lacks a gearbox, with a maximum installation angle of 15° and weighing 182 kg.
- Description
- Ask a Question
-

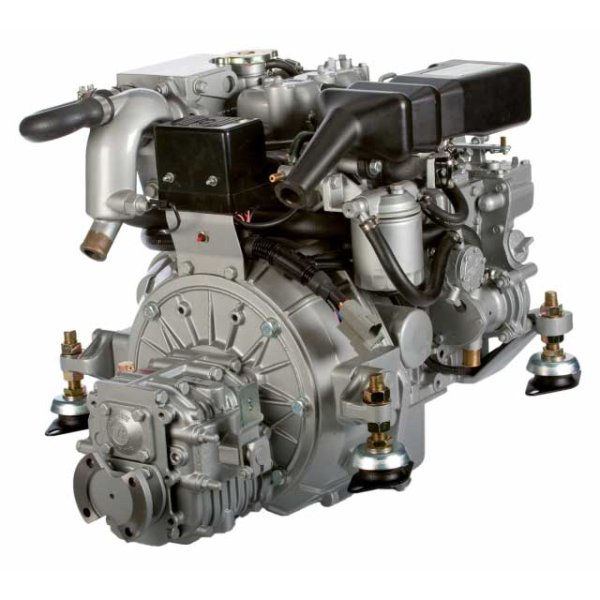

Craftsman CM4.52 Diesel Engine, Keel Cooling, No Gearbox
This engine offers a different cooling option while maintaining similar performance characteristics. Key specifications include:
- Engine Type: Mitsubishi
- Output at flywheel: 38.9kW/52HP (ISO 8665/3046)
- Maximum torque: 105Nm
- Number of cylinders: 4
- Capacity: 1758 cm
- Aspiration: Turbo Charged
- Stop solenoid: Energised to stop
- Alternator: 90 A / 12V (Bosch / SEG)
- Max. installation angle: 15° (Backwards)
- Maximum revolutions: 3000 rpm
- Flexible Engine Mountings: CM type 5*
- Calorifier connection: Optional
- Exhaust diameter: ø50 mm
- Electronic protection: 10A circuit breaker
- Weight: 182 kg
- Refrigeration: Keel cooling
- Gearbox: No
-
