SKU:
CN C-AA45200003
€ 13.416,83
1-2 weeks delivery time
-
+
The Craftsman CM4.52 Diesel Engine with intercooling and gearbox TMC60 offers enhanced cooling efficiency for demanding applications. It produces 38.9 kW/52 HP output, with 105 Nm of maximum torque, and has 4 cylinders. The engine uses indirect cooling with a heat exchanger and a 90 A alternator, featuring flexible engine mountings and weighing 182 kg. It also includes a 15° max installation angle and a TMC60 gearbox for improved performance.
- Description
- Ask a Question
-

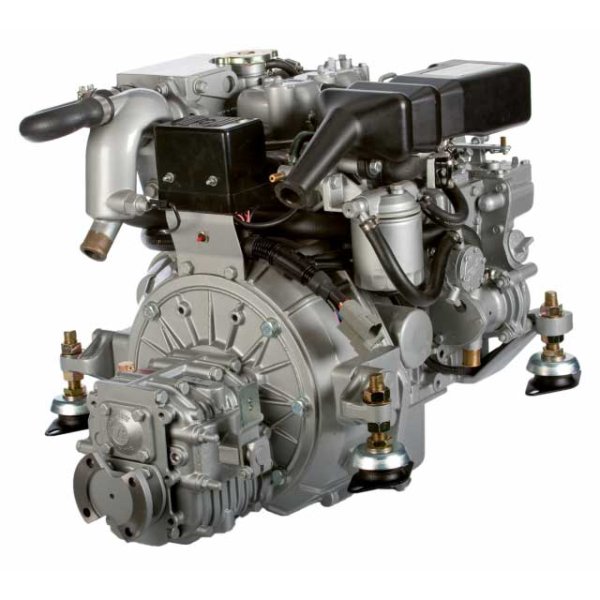

Craftsman CM4.52 Diesel Engine, Intercooling, Gearbox TMC60
The Craftsman CM4.52 Diesel Engine with intercooling technology offers enhanced cooling efficiency and performance for demanding applications.
- Basic Engine: Mitsubishi
- Output at flywheel: 38.9 kW / 52 HP (ISO 8665/3046)
- Maximum torque: 105 Nm
- Number of cylinders: 4
- Capacity: 1758 cm³
- Aspiration: Turbo Charged
- Stop solenoid: Energised to stop
- Alternator: 90 A / 12V (Bosch / SEG)
- Max. installation angle: 15° (Backwards)
- Maximum revolutions: 3000 rpm
- Cooling system: Indirect, with heat exchanger
- Flexible Engine Mountings: CM type 5*
- Calorifier connection: Optional
- Exhaust diameter: Ø50 mm
- Electronic protection: 10A circuit breaker
- Weight: 182 kg
- Refrigeration: Intercooling
- Gearbox: TMC60
-
