SKU:
CN C-AA45200002
€ 13.416,83
1-2 weeks delivery time
-
+
The Craftsman CM4.52 Diesel Engine with keel cooling and gearbox TMC60 combines powerful performance with the added versatility of a TMC60 gearbox. The engine provides 38.9 kW/52 HP, 105 Nm of torque, and features 4 cylinders, turbocharging, and indirect cooling with a heat exchanger. It has a 15° max installation angle, weighs 182 kg, and includes a 90 A alternator, with a calorifier connection optional.
- Description
- Ask a Question
-

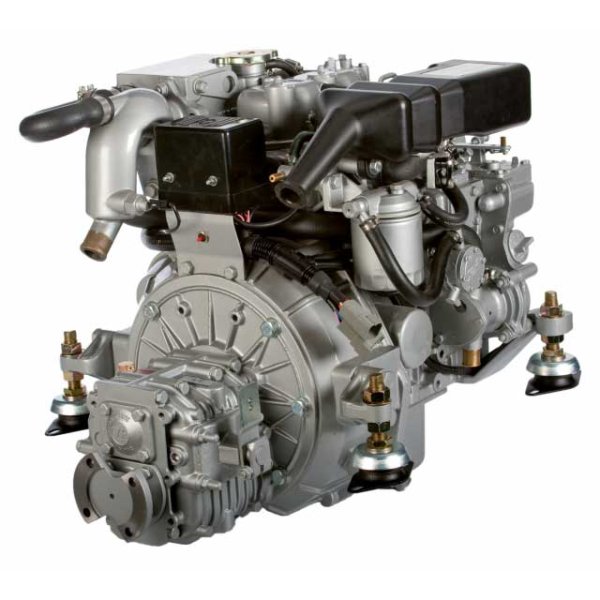

Craftsman CM4.52 Craftsman Diesel Engine, Keel Cooling, Gearbox TMC60
The Craftsman CM4.52 Diesel Engine is designed to deliver reliable power with impressive specifications and features.
- Basic Engine: Mitsubishi
- Output at flywheel: 38.9 kW / 52 HP (ISO 8665/3046)
- Maximum torque: 105 Nm
- Number of cylinders: 4
- Capacity: 1758 cm³
- Aspiration: Turbo Charged
- Stop solenoid: Energised to stop
- Alternator: 90 A / 12V (Bosch / SEG)
- Max. installation angle: 15° (Backwards)
- Maximum revolutions: 3000 rpm
- Flexible Engine Mountings: CM type 5*
- Calorifier connection: Optional
- Exhaust diameter: Ø50 mm
- Electronic protection: 10A circuit breaker
- Weight: 182 kg
- Refrigeration: Keel cooling
- Gearbox: TMC60
-
