SKU:
CN C-AA45120001
€ 11.544,10
1-2 weeks delivery time
-
+
The Craftsman CM4.42 Diesel Engine with Keel Cooling and Gearbox TMC60 provides reliable power and efficiency with a Mitsubishi 4-cylinder engine, delivering 30.9 kW (42 hp) and 105 Nm of torque. The engine is equipped with a TMC60 gearbox, Bosch 90 A alternator, and indirect cooling with a heat exchanger. It includes flexible engine mounts, a 10 A circuit breaker, and a calorifier connection. Weighing 175 kg, it offers enhanced functionality for industrial and maritime applications.
- Description
- Ask a Question
-

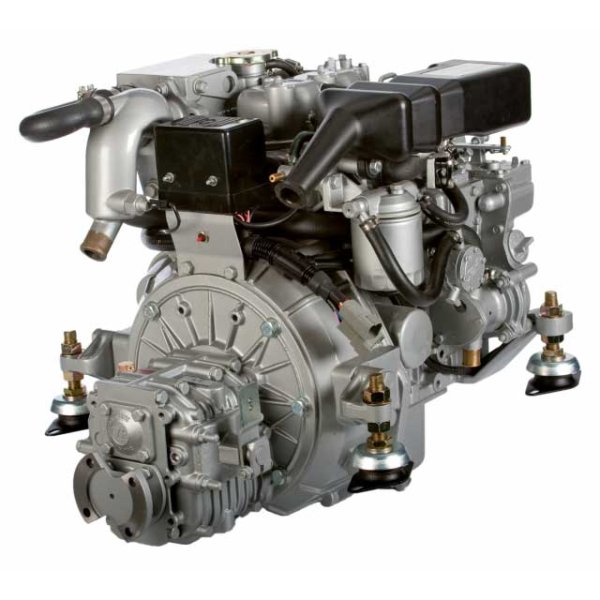

Craftsman CM4.42 Diesel Engine, Keel Cooling, Gearbox TMC60
This model offers the same high-quality diesel engine performance with the added advantage of a TMC60 gearbox for enhanced functionality. Below are the specifications:
- Basic Engine: Mitsubishi
- Cylinders: 4 In Line
- Cylinder Capacity: 1.758 cm³
- Power: 30.9 kW / 42 hp
- Max. Engine Speed: 3,000 rpm
- Max. Torque: 105 Nm
- Aspiration: Natural
- Alternator: 90 A / 12 V (Bosch / SEG)
- Cooling System: Keel Cooling
- Flexible Engine Mounts: CM Type 5
- Calorifier Connection: Optional
- Exhaust Diameter: BSP G11/2 thread
- Electronic Protection: 10 A Circuit Breaker
- Stop Solenoid: Energized To Stop
- Max. Installation Angle: 15° (Backwards)
- Weight: 175 kg
- Refrigeration: Keel cooling
- Gearbox: TMC60
-
