SKU:
CN C-AB04020000
€ 353,50
1-2 weeks delivery time
-
+
The Craftsman ALFA 40E Engine Panel provides a fully customisable instrument setup with pre-wired connections for essential gauges like the tachometer, voltmeter, and oil pressure gauge. Made from anodised aluminium, the panel includes UV-resistant foil, waterproof connectors, and a conformal coating for protection. It supports backlit gauges with optional dimming, and comes with stainless steel screws and a gasket for easy dashboard mounting.
- Description
- Ask a Question
-

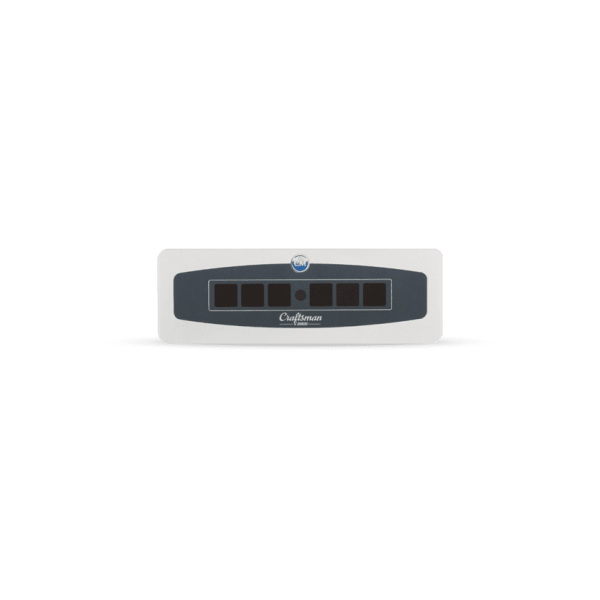

Craftsman ALFA 40E Engine Panel
The Craftsman ALFA 40E Engine Panel allows for a personalised instrument setup. It comes pre-wired for easy connection to the temperature gauge, oil pressure gauge, voltmeter, and tachometer, making installation and setup a breeze. This panel is also milled from solid aluminium and anodised for corrosion resistance.
- Customisable instrument panel with pre-wired cables for easy setup
- Milled from solid aluminium for high durability
- Optional gauges (tachometer, voltmeter, oil pressure gauge) with backlighting
- UV-resistant foil at the front for long-lasting durability
- Stainless steel screws and gasket for dashboard mounting
- Conformal coating on the printed wiring board for protection against humidity and vibration
- Operating Voltage: 12 VDC
- Automatic Dimmer (optional) for adjustable lighting of the backlit gauges
- Panel Dimensions: 150×50 mm, Cutout Size: 102×34 mm, Installation Depth: 114 mm
- 50 cm cable loom for installation flexibility
-
