SKU:
CN C-AB03020000
€ 750,46
1-2 weeks delivery time
-
+
The Craftsman ALFA 30E Engine Panel in black is a customizable solution for monitoring engine performance, made from solid aluminium and anodised for durability. The panel includes a tachometer, voltmeter, and oil pressure gauge, along with waterproof connectors, a rear cover for protection, and a digital hour counter. It also offers an optional dimmer module for adjustable backlighting and comes with standard warning lights.
- Description
- Ask a Question
-

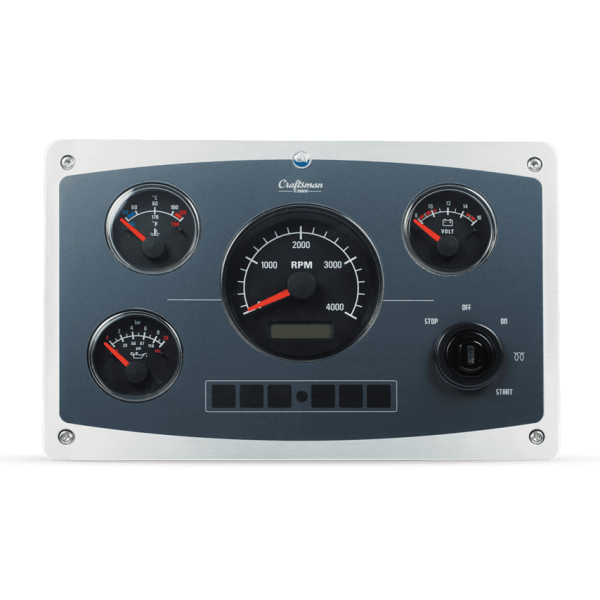

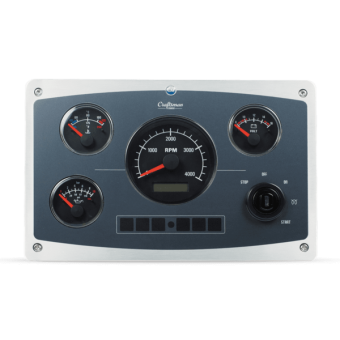

Craftsman ALFA 30E Engine Panel Black
The Craftsman ALFA 30E Engine Panel in black offers a customisable solution to keep you informed on the status of your engine. Constructed from a solid aluminium plate and anodised for exceptional corrosion resistance, this panel is packed with essential features for engine monitoring.
- Customisable engine panel for real-time engine condition monitoring
- Milled from solid aluminium for optimal durability
- Standard features include revolution/hour counter, voltmeter, temperature gauge, and oil pressure gauge
- Waterproof connectors for added protection
- Rear cover for protection of electrical components
- Easy calibration of tachometer with supplied stylus
- Double connection on voltmeter to interconnect backlight power and other gauges
- Backlit gauges with optional automatic dimmer module for adjustable lighting
- Tachometer with digital hour counter that activates above 400 rpm
- UV-resistant foil and double glass to prevent condensation
- Stainless steel screws and gasket for secure dashboard mounting
- Ignition switch with re-start protection, 3 keys included, and dust cover
- Conformal coated printed wiring board for humidity and vibration protection
- Warning lights for high exhaust temperature, low engine oil pressure, high coolant temperature, battery charging current, and pre-heating
- Operating Voltage: 12 VDC
- Panel Dimensions: 260×166 mm, Cutout Size: 237×143 mm, Installation Depth: 114 mm
-
