SKU:
CN C-AB02020001
€ 533,10
1-2 weeks delivery time
-
+
The Craftsman ALFA 20E Engine Panel in white offers the same robust features as the black version, including a voltmeter, tachometer, and ignition switch with re-start protection. It is made of anodised aluminium for corrosion resistance and has waterproof connectors, easy tachometer calibration, and optional backlight dimming. The panel ensures a clear and protected dashboard installation with double glass and a protective rear cover.
- Description
- Ask a Question
-

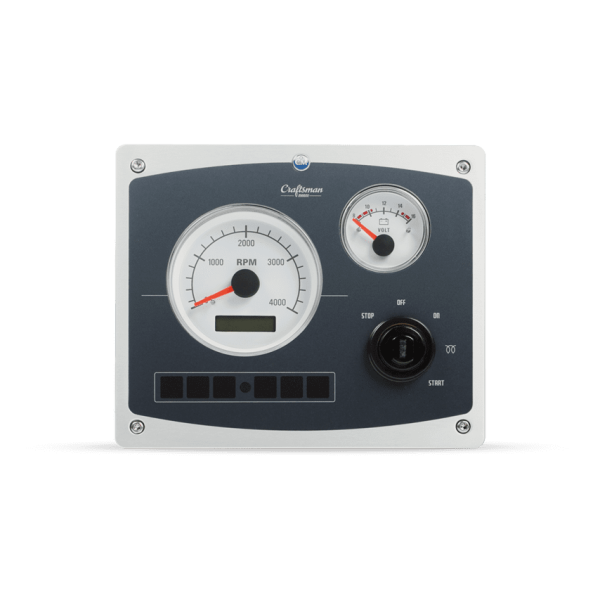

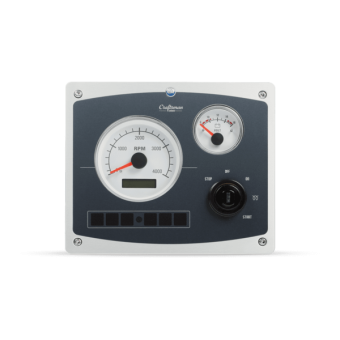

Craftsman ALFA 20E Engine Panel White
The Craftsman ALFA 20E Engine Panel in white offers the same functionality and customisation options as the black version, ensuring you can monitor your engine’s performance accurately. It's made from solid aluminium and anodised for corrosion resistance.
- Waterproof connectors for secure and reliable connections.
- Rear cover to safeguard electrical components from damage.
- Easy tachometer calibration with the included stylus.
- Voltmeter offers double connection for linking the backlight power supply of other gauges (fuel, water, waste water, etc.).
- Backlit gauges with optional automatic dimmer module for adjustable backlight brightness.
- Tachometer with digital hour counter, which activates when the engine speed surpasses 400 rpm.
- Ultraviolet sunlight resistant foil to maintain performance in harsh conditions.
- Double glass to avoid condensation and ensure clarity.
- Stainless steel screws for sturdy construction.
- Dashboard mounting gasket for simple installation.
- Ignition switch with re-start protection, 3 keys, and a dust cover for extra protection.
- Printed wiring board coated with a conformal layer to protect against humidity and vibrations.
- Standard warning lights for:
- High exhaust temperature
- Low engine oil pressure
- High coolant temperature
- Battery charging current
- Pre-heating of the engine
- Operating voltage: 12 VDC
- Automatic dimmer: Optional
- Tachometer / Hour counter: Yes
- Voltmeter: Yes
- Oil pressure gauge: Optional
- Panel dimensions: 198×166 mm
- Cutout size: 175×143 mm
- Installation depth: 114 mm
-
