SKU:
CN C-AB02020000
€ 533,10
1-2 weeks delivery time
-
+

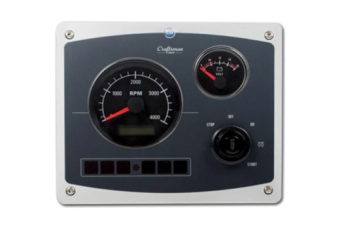

The Craftsman ALFA 20E Engine Panel in black is a feature-packed engine monitoring system crafted from anodised aluminium. It includes a voltmeter, tachometer with a digital hour counter, and an ignition switch with re-start protection. The panel also offers optional dimming for backlighting and features waterproof connectors, a rear cover for protection, and easy calibration of the tachometer.
- Description
- Ask a Question
-

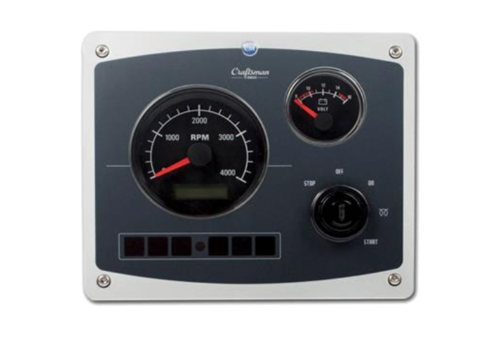

Craftsman ALFA 20E Engine Panel Black
The Craftsman ALFA 20E Engine Panel in black is a customisable panel that keeps you updated on your engine’s condition. It's crafted from solid aluminium and anodised for enhanced corrosion resistance, ensuring long-lasting durability.
- Waterproof connectors for reliable performance.
- Rear cover to protect electrical parts from damage.
- Easy calibration of the tachometer with the included stylus.
- Double connection on the voltmeter for interconnecting the backlight power supply of other gauges (fuel, water, waste water, etc.).
- All gauges come with backlight. The optional automatic dimmer module allows backlight dimming.
- Tachometer includes a digital hour counter, which starts counting when the engine speed exceeds 400 rpm.
- Ultraviolet sunlight resistant foil on the front for added durability.
- Double glass to prevent condensation.
- Stainless steel screws for secure assembly.
- Gasket for easy dashboard mounting.
- Ignition switch with re-start protection, including 3 keys and a dust cover.
- Printed wiring board with conformal coating for protection against humidity and vibrations.
- Standard warning lights for:
- High exhaust temperature
- Low engine oil pressure
- High coolant temperature
- Battery charging current
- Pre-heating of the engine
- Operating voltage: 12 VDC
- Automatic dimmer: Optional
- Tachometer / Hour counter: Yes
- Voltmeter: Yes
- Oil pressure gauge: Optional
- Panel dimensions: 198×166 mm
- Cutout size: 175×143 mm
- Installation depth: 114 mm
-
