SKU:
CN C-AB01020000
€ 288,29
1-2 weeks delivery time
-
+
The Craftsman ALFA 10E Engine Panel is a durable and reliable engine monitoring solution made from anodised aluminium for corrosion resistance. It includes waterproof connectors, a protective rear cover, and ultraviolet-resistant foil. The panel features warning lights for high exhaust temperature, low engine oil pressure, and more, but lacks a tachometer or oil pressure gauge. It operates on a 12 VDC voltage and is easy to install with included gaskets and stainless steel screws.
- Description
- Ask a Question
-

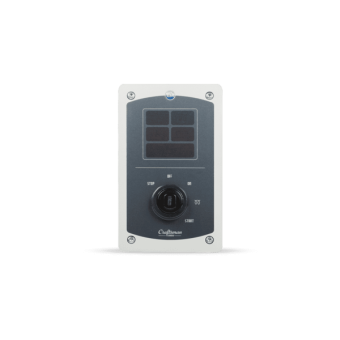

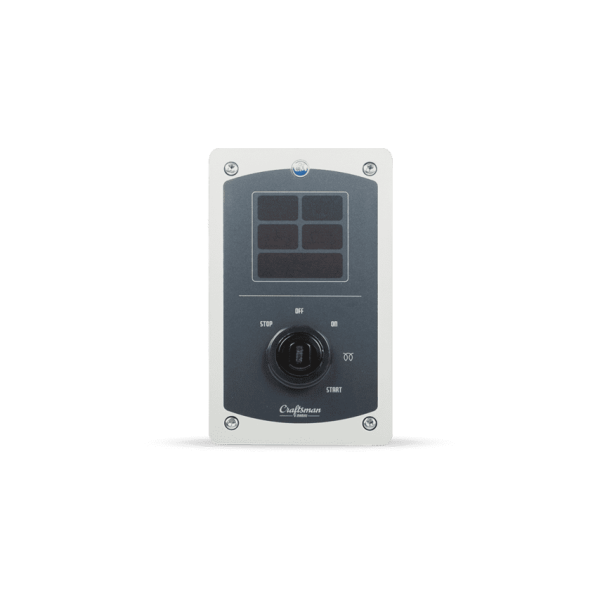

Craftsman ALFA 10E Engine Panel
The Craftsman ALFA 10E Engine Panel is a simple yet comprehensive solution to monitor your engine's performance. Designed from a solid aluminium plate and anodised for corrosion resistance, this engine panel ensures durability and reliable functionality in any environment.
- Waterproof connectors for added protection against moisture.
- Rear cover that protects electrical components from damage.
- Ultraviolet-resistant foil at the front to withstand sunlight exposure.
- Stainless steel screws for enhanced strength and longevity.
- Gasket included for secure dashboard mounting.
- Ignition switch with re-start protection, supplied with 3 keys. Includes a dust cover.
- Printed wiring board with conformal coating to protect against humidity and vibrations.
- Warning lights for:
- High exhaust temperature
- Low engine oil pressure
- High coolant temperature
- Battery charging current
- Pre-heating of the engine
- Operating voltage: 12 VDC.
- No automatic dimmer feature.
- No tachometer or hour counter.
- No voltmeter or oil pressure gauge.
- Panel dimensions: 100×166 mm.
- Cutout size: 76×138 mm.
- Installation depth: 114 mm.
-
