The Whale WX1563 is a brass stem adaptor that connects 3/8" NPT male threads to 15mm pipework, designed for mobile applications with easy installation and reuse. It features WX15 fittings with a double gripper design for secure pipe retention, a cage collet to prevent leaks near bends, and an internal support ring to maintain the O-ring seal, all in a strong single-piece moulding without needing collet clips.
- Description
- Ask a Question
-

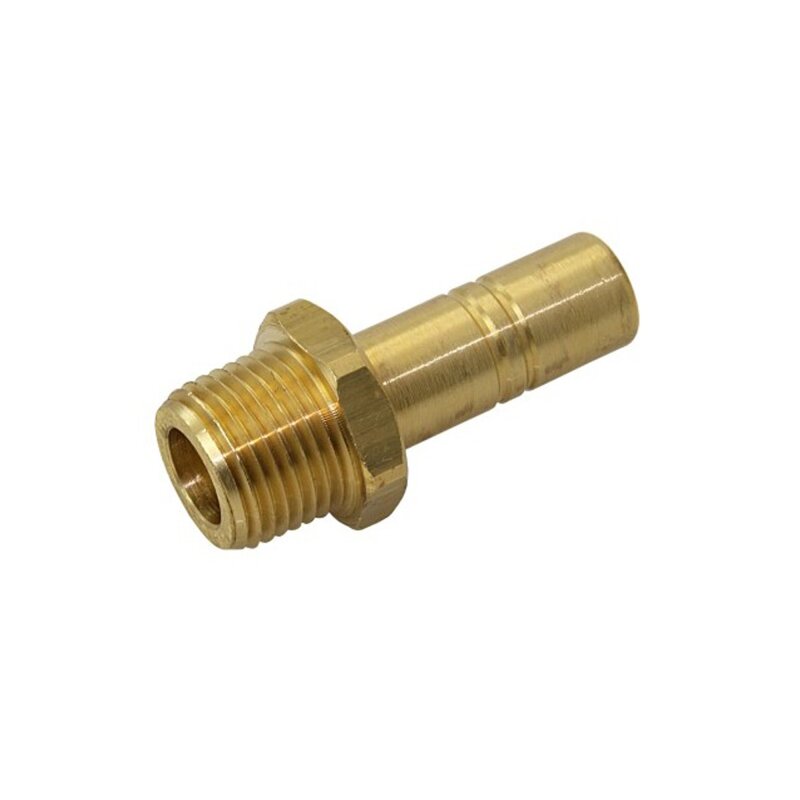

Whale WX1563 - QuickConnect Stem Adaptor 3/8" NPT Male, 15mm, Brass
This brass stem adaptor connects 3/8" NPT male threads to 15mm pipework with high integrity and is designed specifically for mobile applications, ensuring easy installation and reuse.
- Model: WX1563
- Article number: 17540500
- Connection: 3/8" NPT male to 15mm pipe
- Material: Brass
- Features WX15 fittings design for secure and reliable plumbing connections
- ‘WX15 Double Gripper’ design guarantees lifelong pipe retention even under high pressure
- ‘Cage collet’ prevents leaks especially near tight bends
- Internal support ring holds the O-ring seal firmly, avoiding distortion or leaks
- Single-piece moulding enhances fitting strength
- Outer sleeve includes collet cover to prevent accidental pipe release
- No collet clips required, reducing installation time
- Pipework includes measured cut marks for accurate fitting depth
Installation: Cut pipework cleanly with Whale cutters and push pipe fully into fitting to the second internal stop.
Release: Push back the grey collet, hold it, and pull out the pipework.
-
