The Whale WM8284 is a fully prewired grey waste system featuring Intelligent Control technology, utilizing a high-capacity Gulper IC pump to manage waste from multiple drains. It activates only when grey waste water needs to be pumped out, ensuring quiet, automatic drainage without direct water contact. The system includes a Two Way Manifold IC and is designed for 12V DC operation with various certifications including ISO8846, IP45, and CE.
- Description
- Ask a Question
-

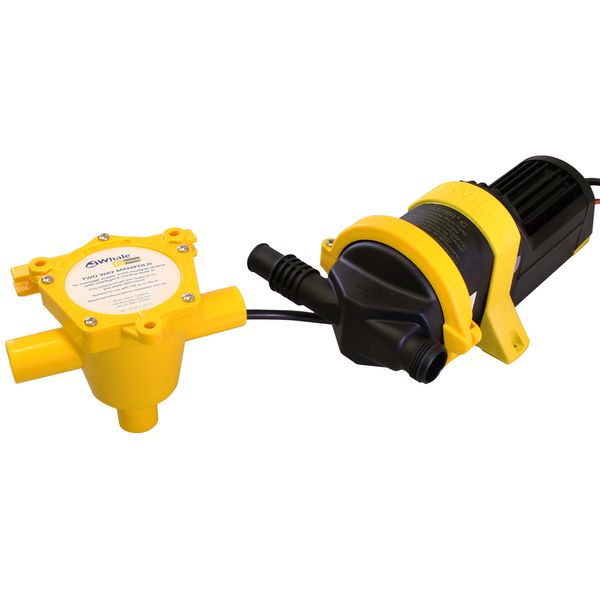

Whale WM8284 - Grey IC Auto Waste System 12V
The Whale WM8284 is a fully prewired grey waste system featuring Intelligent Control technology. It uses a high-capacity Gulper IC pump to manage waste from multiple drains efficiently, activating only when grey waste water needs to be pumped out. The system includes a Two Way Manifold IC that senses waste levels through the wall, ensuring quiet, automatic drainage without direct water contact.
- Item number: 17540445
- Flow rate: 19 LPM (5 US gallons) / 1140 LPH (300 US gallons), 17.5 LPM (4.6 US gallons) / 1038 LPH (270 US gallons) at 1m head
- Maximum head and lift: 4m (13.1 ft)
- Maximum recommended head: 3 metres (9.8 feet)
- Minimum cable specification: 1.5mm²
- Connections: 19mm (3/4") / 25mm (1")
- Voltage: 12V DC
- Fuse: 10A
- Approvals: ISO8846, IP45, CE Certified
- Height: 117mm
- Width: 198mm
- Depth: 102mm (4")
- Length: 280mm
- Current consumption: 7.5A with 19mm hose, 8A with 25mm hose
- Brand: Whale
- Model: WM8284
- Country of Origin: United Kingdom
-
