$ 739,19
1-2 weeks delivery time
-
+
The Whale SI8284 is a remote-mounted electric bilge pump featuring intelligent control electronics that simplify installation and maintenance. It integrates a non-choke valve, offers easy installation on uneven surfaces, and includes a secure wrap-around mounting feature. The pump is self-priming, capable of dry running, and has a flow rate of 1140 LPH, making it suitable for confined bilge spaces and maintenance-free operation.
- Description
- Ask a Question
-

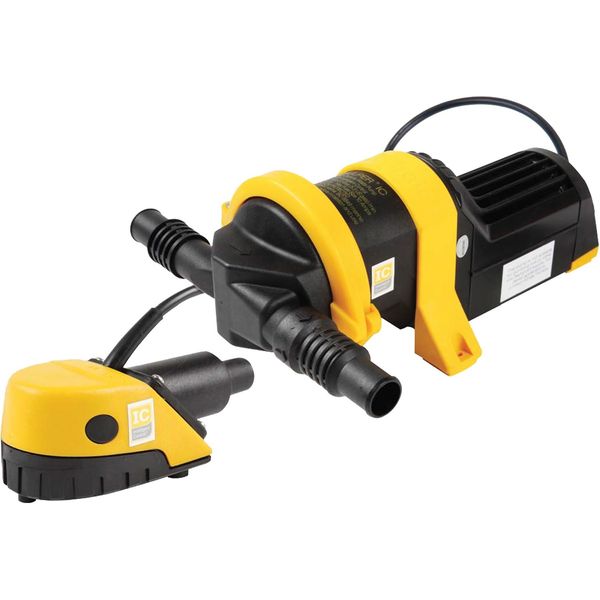

Whale SI8284 - Bilge IC Remote Mounted Bilge System 12V
The Whale SI8284 is a remote-mounted electric bilge pump featuring intelligent control electronics. It simplifies installation by reducing four separate components into one unit, making maintenance easier. The innovative electronic control allows IC sensors to communicate directly with the pump, enabling automatic operation.
- Easy to inspect and protected by mounting up to 4 meters from the bilge area
- Integrated non-choke valve eliminates filter maintenance
- Simple installation on uneven surfaces
- Secure wrap-around mounting feature
- Self-priming and dry running capable
- Port orientation: Horizontal, easily adjustable to vertical
- Connectors: IP68 waterproof quick connect 7-way (direct to Gulper IC)
- Three-in-one Strainer, non-return valve, and electronic control switch
- Fits confined bilge spaces, maintenance-free
- Flow Rate: 1140 LPH (301 US GPH) / 19 LPM (5 US GPM)
- Material: Glass-Filled Nylon Pump Head, Santoprene Valves & Diaphragm
- Maximum Combined Head and Lift: 4m (13.1ft)
- Maximum Pump Head: 2.3 to 4.27 meters
- Hose Sizes: 19mm / 3/4", 25mm / 1"
- Maximum Recommended Head: 3 meters (9.8 feet)
- Self-Primes up to 3 meters (9.8 feet)
- Wire Size: Minimum 1.5mm² (16 AWG)
- Inlet/Outlet Fittings: For 19mm (3/4") & 25mm (1") ID hose; strainer suits 19mm (3/4") ID hose
- Brand: Whale
- Model: SI8222B
- Voltage: 12V DC
- Amps: Up to 8A (standby current 0.01A)
- Fuse: 10A
- Dimensions: Height 120mm (4.7"), Width 198mm, Length 280mm
- Cable Length: 2 meters (6ft)
- Country of Origin: United Kingdom
- Article Number: 17540370
-
