The Whale SG8284 Gulley IC high capacity grey waste system is designed for managing shower waste, featuring the Gulper IC electric waste pump and a Compact Gulley IC with a 4-metre cable. It offers automatic control, sensing grey waste levels and controlling the pump without manual intervention. The system is ideal for installations with limited space and boasts a flow rate of up to 19 litres per minute.
- Description
- Ask a Question
-

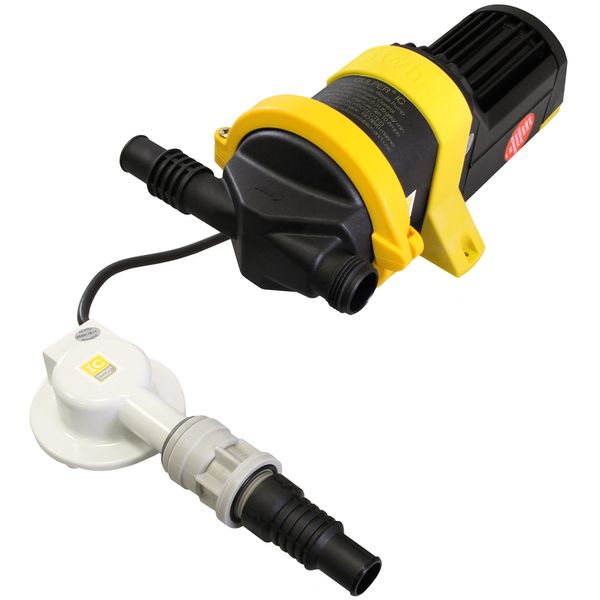

Whale SG8284 - Gulley IC High Capacity Grey Waste System 12V
- Article number: 17540363
- The Gulley IC high capacity pump is designed to manage waste from a single drain, specifically for shower waste. It includes the Gulper IC electric waste pump and a Compact Gulley IC with a 4m cable for easy installation.
- Key Features:
- Automatic control - senses grey waste level and controls the pump
- No manual switches required
- Ideal for installations with limited space
- Gulper IC - Electric grey waste pump with intelligent control:
- Easy installation - pre wired plug and play kit
- Reliability - no moving parts to clog
- Long life - self primes and can run dry
- Soft start - protects the pump
- Low current controlled switching
- Fast drainage - high capacity up to 19 litres/min
- Optimal drainage - built in time delay
- Accreditations: ISO8846, CE marked
- Specifications:
- Flow Rate: 19 LPM (5 US Gallons), 1140 LPH (300 US Gallons), 17.5 LPM (4.6 US Gallons), 1038 LPH (270 US Gallons) at 1m head
- Material: Glass-Filled Nylon Pump Head, Santoprene Valves and Diaphragm, Aluminium Pump Body, Delrin Gear Wheel, Stainless Steel Fasteners
- Maximum Head and Lift: 4m (13.1ft)
- Minimum Cable Spec: 1.5mm² (16 AWG)
- Maximum Pump Head: 2.3 to 4.27 Metres
- Connections: 19mm (3/4") / 25mm (1")
- Hose Size: 19mm / 3/4", 25mm / 1"
- Maximum Recommended Head: 3 Metres (9.8 Feet)
- Maximum Suction Lift: 3 Metres (10ft)
- Brand: Whale
- Model: SG8284
- Voltage: 12V DC
- Fuse: 10A
- Height: 117mm
- Width: 198mm
- Depth: 102mm (4")
- Consumption: 8A
- Country of Origin: United Kingdom
-
