The Whale ND9210 is a heavy-duty, compact transfer pump designed for bulkhead mounting. It features dual hose connections compatible with 25 mm (1") and 38 mm (1-1/2") ID hoses and offers a flow rate up to 55 litres per minute. The pump is made from durable materials and is suitable for water or diesel transfer, with a maximum pump head of 2.3 to 4.27 meters.
- Description
- Ask a Question
-

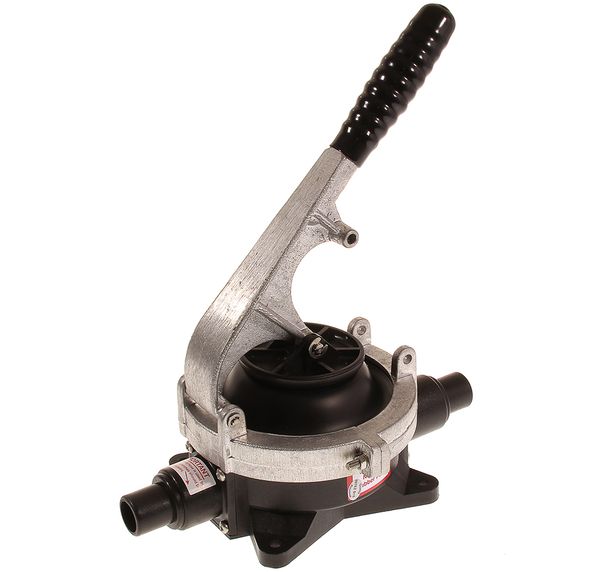

Whale ND9210 - Gusher Urchin Heavy Duty Pump (25mm / 38mm Hose)
The Whale ND9210 is a heavy-duty, compact transfer pump designed for bulkhead mounting. It features dual hose connections compatible with 25 mm (1") and 38 mm (1-1/2") ID hoses. The pump offers a flow rate up to 55 litres per minute at 70 strokes per minute, making it suitable for water or diesel transfer.
- Item number: 17540321
- Materials in contact with liquid: Moulded acetal, copolymer, glass-filled polypropylene, nylon, stainless steel, Nitrile diaphragm
- External Materials: Aluminium diaphragm clamping ring and handle
- Capacity: 600 ml stroke
- Flow Rates:
- At 0.5 m Head & 1 m Lift, 60 Strokes/min:
- 25 mm hose: 36 LPM
- 38 mm hose: 49 LPM
- At 60 Strokes/min & 25 mm hose: 47 LPM
- At 90 Strokes/min & 38 mm hose: 68 LPM
- At 0.5 m Head & 1 m Lift, 60 Strokes/min:
- Height with handle: 277 mm (10-7/8")
- Length: 348 mm
- Width with ports: 249 mm (9-6/8")
- Maximum Pump Head: 2.3 to 4.27 meters
- Maximum Recommended Head: 3 meters (9.8 feet)
- Maximum Suction Lift: 4 meters (13.5 feet)
- Diameter of handle shaft: 16 mm
- Mounting Holes Diameter: 6 mm
- Distance Between Mounting Hole Centres: 107.4 mm (4-2/8")
- Depth:
- Pump Body: 63 mm (2-1/2")
- With Handle Extended: 301 mm (11-3/4")
- Mounting: Bulkhead Mount
- Removable Handle: Yes
- Inlet/Outlet: Suits 25 mm & 38 mm (1" & 1-1/2") ID hose
- Model: ND9210
- Series: Urchin
- Brand: Whale
- Country of Origin: United Kingdom
- Voltage: Manual
- Warranty: 5 Years
-
