Whale GW0500 - Shower Sump System 12V 32 LPM

Whale GW0500 - Shower Sump System 12V 32 LPM

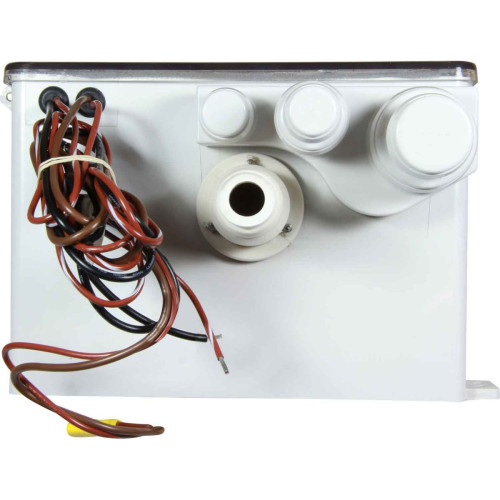

The Whale GW0500 is a grey water waste management system designed to efficiently collect waste water from sinks and showers. It pumps the water either overboard or into another waste water tank, providing a practical solution for managing grey water on boats or similar environments. The unit comes fully pre-assembled and wired for quick and easy installation.

• Item Number: 17540270
• Includes ports compatible with various hose sizes, allowing flexible plumbing setups and easy reconfiguration if needed.

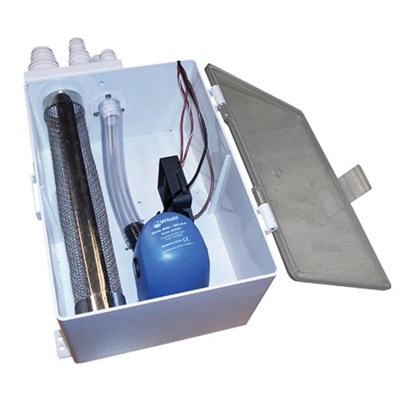

• Features a compact but powerful Whale Orca 500 submersible pump inside the sump box.
• Pump operates via an electric field sensor switch that automatically detects water levels and activates accordingly.
• Equipped with a removable stainless steel mesh strainer for straightforward maintenance.
• Clear hinged lid with integrated seal ensures easy inspection and protection from leaks, snapping shut securely.
• Built-in non-return valve prevents backflow of water.
• Includes three mounting brackets for secure installation.
• Tank construction: ABS and polycarbonate; pump body and sensor: ABS; seals: nitrile; pump impeller: acetyl.
• Flow rates:
  • Open flow rate: 32 LPM (500 US GPH)
  • Flow rate at 1m (3ft) head: 16 LPM (255 US GPH)
• Electrical: 12V DC, 1.5A operating current, fused at 2A
• Dimensions:
  • Height: 130mm (5-1/8")
  • Length: 348mm (13.7") including ports, 267mm (excluding ports)
  • Width: 217mm (8.5") including hinges and brackets, 168mm (excluding hinges and brackets)
  • Mounting bracket size: 30mm (1.1")

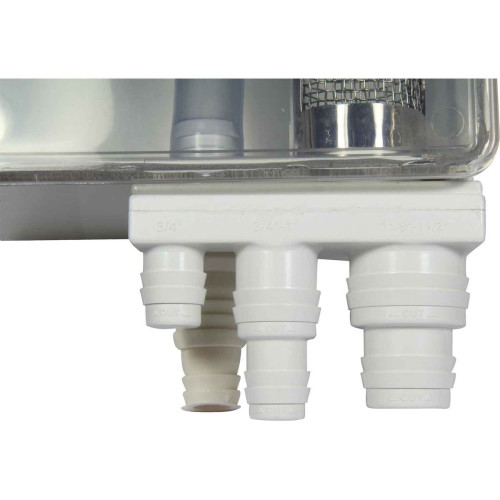

• Hose connections:
  • Outlet: 19mm (3/4") or 25mm (1") internal diameter hose
  • Inlet: fits 19mm (3/4"), 25mm (1"), 28mm (1-1/8"), and 38mm (1-1/2") internal diameter hoses
• Screw size: 4.65mm diameter
• Brand: Whale
• Country of Origin: United Kingdom
• Model Number: GW0500
