Whale FW1214 - Watermaster Auto Pump 12L 12V 30PSI + Strainer

Whale FW1214 - Watermaster Auto Pump 12L 12V 30PSI + Strainer

The Whale FW1214 Watermaster is the latest generation of fresh water pumps, succeeding the Fresh IC range. It is engineered specifically for marine domestic water systems to deliver power, smooth performance, and robust protection. This diaphragm pump offers a constant, smooth flow with high output, able to self-prime up to 3 meters (10 feet).

• Power: Provides strong flow rates to 3-4 outlets with a steady movement of water. Self-priming capability up to 3 meters (10 feet).
• Performance: Quiet, automatic operation suitable for fresh and salt water. Easy and quick installation with compatibility for Whale's Quick Connect system, standard plumbing, or threaded fittings. The pump includes rotatable mounting feet to accommodate various installation needs.
• Protection: Fully sealed pump housing constructed from glass-filled polypropylene and polybutylene terephthalate (PBT), fitted with nitrile seals and stainless steel fasteners. The diaphragm, valves, and feet are made from durable monprene material. Rated IP65 for water ingress protection. Runs dry without damage. Equipped with an inlet strainer to block debris. EMC compliant and CE marked for safety and performance assurance.
• Specifications:
  • Article number: 17540221
  • Cut Out Pressure: 30 PSI / 2 Bar
  • Flow Rate: 11.5 LPM (3 US GPM), 11.75 LPM (3.1 US GPM) at 1 meter head

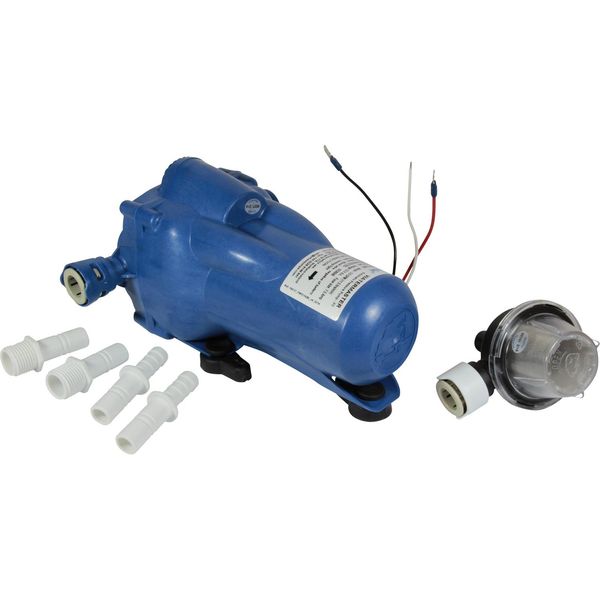

  • Supplied With: Strainer
  • Accumulator Recommended: Yes
  • IP Rating: IP65
  • Hose Size: 13mm / 1/2"
  • Maximum Discharge Head: 20 Metres (66 Feet)
  • Self Primes up to: 3 Metres (9.8 Feet)
  • Minimum Wire Size: 1.5mm² (16 AWG)
  • Inlet/Outlet Fittings: 15mm Whale Female Quick Connect, 13mm (1/2") ID Hose & 1/2" NPT
  • Brand: Whale
  • Model: P3 FW1214, FW1214B
  • Voltage: 12V DC
  • Amps: 6A
  • Fuse: 7.5A
  • Height: 125mm (4.9")
  • Width: 179mm (7")
  • Length: 209mm (8.25")
  • Country of Origin: United Kingdom
  • Warranty: 2 Years
