SKU:
BP L31010
$ 87,43
1-2 weeks delivery time
-
+
The Nuova Rade 31010 Environmental Electronic Level Switch (E.E.L.S) is an electronic bilge switch that activates pumps only when water is detected and avoids hydrocarbons. It mounts vertically, works with pumps up to 22A, and features a durable, waterproof nylon and ABS casing with insulated contacts, using inline connection for 12V DC systems.
- Description
- Ask a Question
-

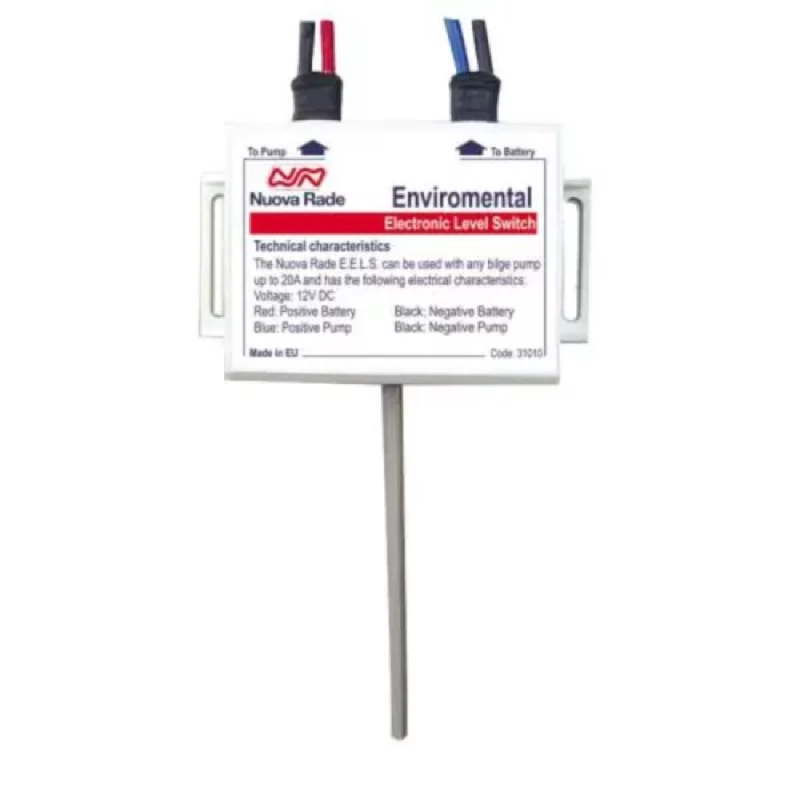

Nuova Rade 31010 - Environmental Electronic Level Switch E.E.L.S
The Nuova Rade Environmental Electronic Level Switch (E.E.L.S) is a modern solution for monitoring water levels with high precision. Unlike traditional switches that rely on air pressure or moving parts, this device uses an electronic sensor for accurate operation. Its design ensures environmentally responsible use by activating the bilge pump only when water is detected and automatically shutting off if hydrocarbons like oil are present, preventing pollution.
- Vertically mounted to the hull and compatible with high-power bilge pumps
- Compact design for greater installation flexibility
- Durable casing made from Nylon and ABS
- 100% waterproof and insulated electrical contacts
Technical characteristics
- Can be used with any bilge pump up to 22A
Electrical characteristics
- Voltage: 12V DC
- Connection to the main circuit: Inline
- Maximum current: 22A

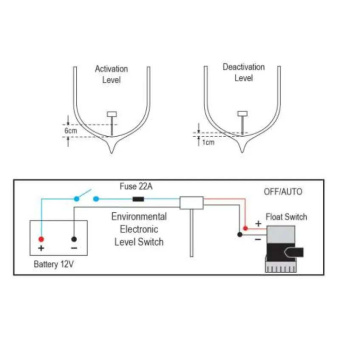

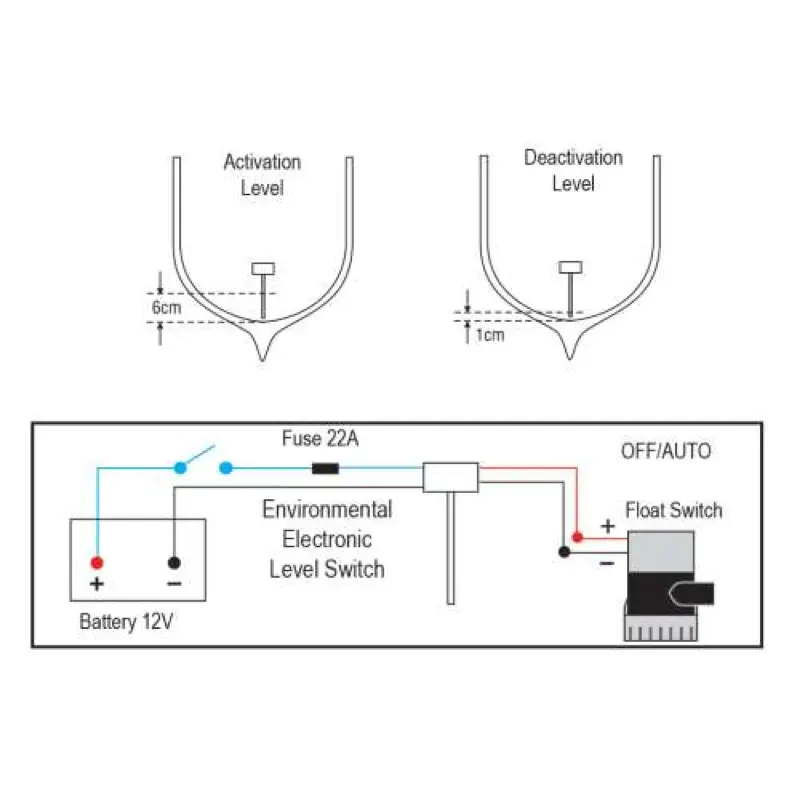

How to connect the Electronic Level Switch
To activate the automatic operation of the bilge pump, connect the switch inline to the positive pole of the battery. Include a fuse inline according to the bilge pump’s current (up to 22A max). Ensure the battery connection follows proper polarity to avoid short circuits and potential damage.
Wiring
- Black: Negative (-)
- Red - Blue: Positive (+)
- Black - Red: Connection to the battery
- Black - Blue: Connection to the bilge pump
Additional Information
- Article number: L31010
- Packaging unit: Piece
- Supplier article code: 31010
- EAN code: 5204980310103
-
