SKU:
BP 032355
$ 163,82
1-2 weeks delivery time
-
+
The MZ Electronic Bilge Pump Switch is designed to operate between 10 and 30 V DC, supporting pump voltages of 12 to 24 V DC. It can handle continuous loads of 15 A and peak loads up to 20 A for short durations. With an IP68 rating, it is suitable for wet environments and can function at temperatures up to 55°C, featuring convenient cable connections and a compact design.
- Description
- Ask a Question
-

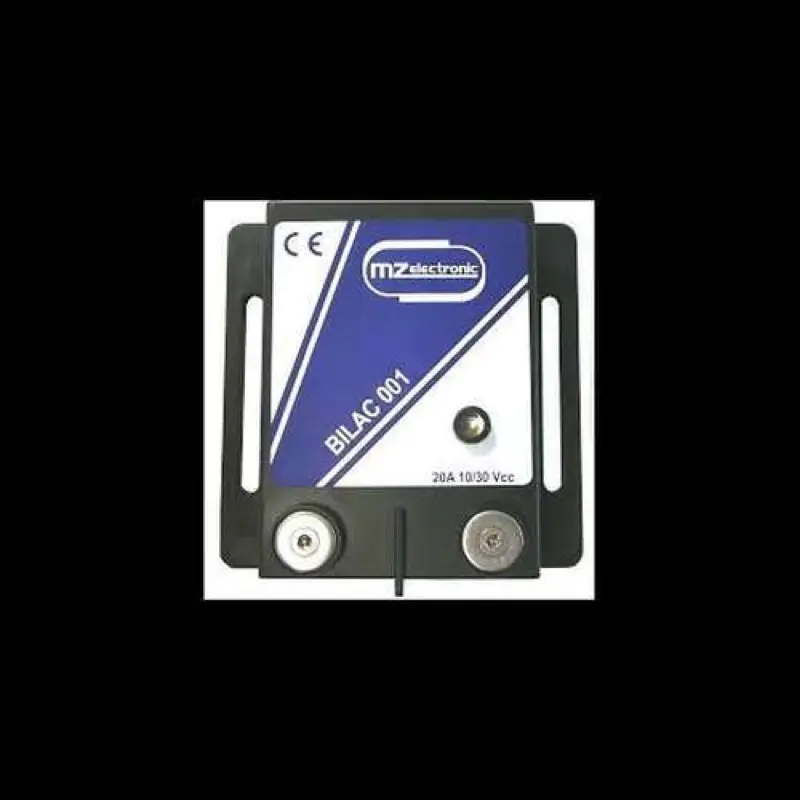

MZ Electronic Bilge Pump Switch 12/24V 20A
This bilge pump switch operates with a power supply from 10 to 30 V DC and supports pump voltage from 12 to 24 V DC. It handles continuous loads of 15 A, with a maximum load of 20 A for 15 minutes. The switch has an IP68 protection rating and can operate up to 55°C.
- Operating voltage: 10 - 30 V DC
- Pump voltage: 12 - 24 V DC
- Continuous load: 15 A
- Maximum load: 20 A for 15 minutes
- IP rating: IP68
- Max operating temperature: 55°C (131°F)
- Drainage liquid conductivity: > 80 µS/cm
- Dimensions (mm): 80 x 77 x 21
- Connection cable: 3 x 1.5 mm²
- Cable length supplied: 750 mm
- Weight: 230 g
- Item number: 032355
- Packaging unit: Piece
- Article code supplier: BILAC001
- EAN code: 8055731160594
-
