SKU:
BP 500-100 10/3CORE NLC
$ 3.516,35
1-2 weeks delivery time
-
+
The Lopolight 500-100 10/3CORE NLC is a 10-channel core tailored for 3-wire or double light connections, offering ABS/LR approved monitoring relays with function and end-of-life checks, a 2A current limiter, and a 7A fuse for added safety. Each channel corresponds to a logical light, and it includes a protective aluminum-covered motherboard.
- Description
- Ask a Question
-
Lopolight 500-100 10/3CORE NLC - 10 Channel NLC Core 3-Wire Cable/Double Lights
The 10-channel 3-core NLC from Lopolight is specially designed for 3-wire or double light connections. Each channel provides enhanced safety with monitoring relays, current limiter, and fuses to protect your system.
- Special 3-wire/double light connection
- Each channel has one ABS/LR type approved Lopolight LMR/Q monitoring relay
- The LMR/Q monitors for function, end-of-life, and provides both current limiter (2A) and a fuse (7A)
- Each channel monitors one logical light:
- 1 channel for single lights
- 2 channels for double lights

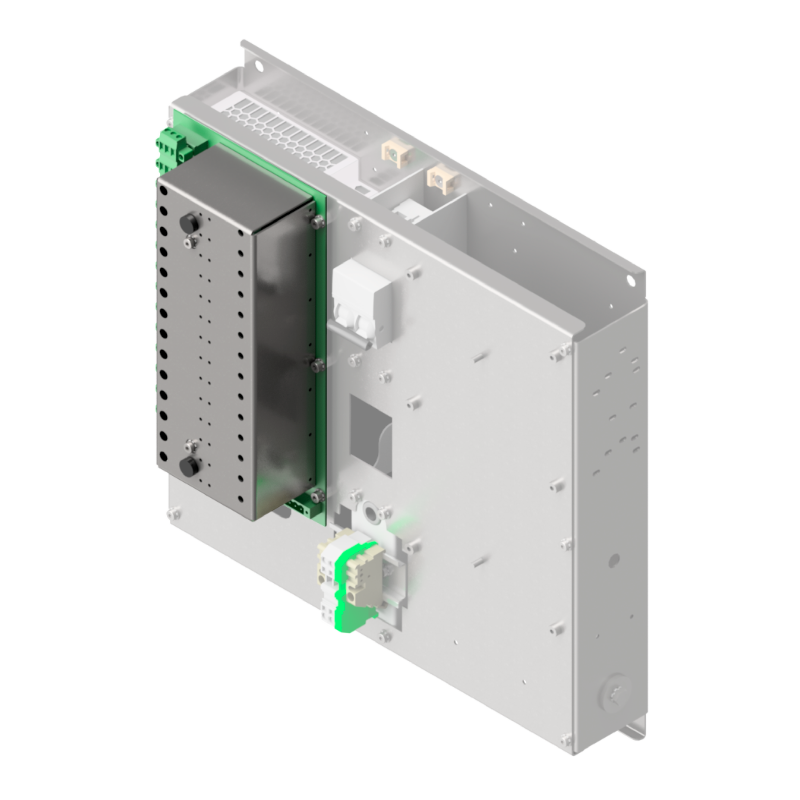

- Includes motherboard with aluminum cover
- Number: 500-100 10/3CORE NLC
- Certification: Certified by ABS/LR to IACS E10 & IEC60945
- Approved to: IEC 60945
- EAN: 5704438020498
- UPC Code: 879343020620
- Weight: 1 Kg / 35.27 Oz
-
