SKU:
BP 301-411+200-012G2S-B
$ 3.074,17
1-2 weeks delivery time
-
+
The Lopolight 301-411+200-012G2S-B combines a hemispherical red obstruction light with a 360° white strobe for anchor use, featuring a robust black aluminum base, 3NM red visibility, and IP68 protection for vessels of all sizes.
- Description
- Ask a Question
-

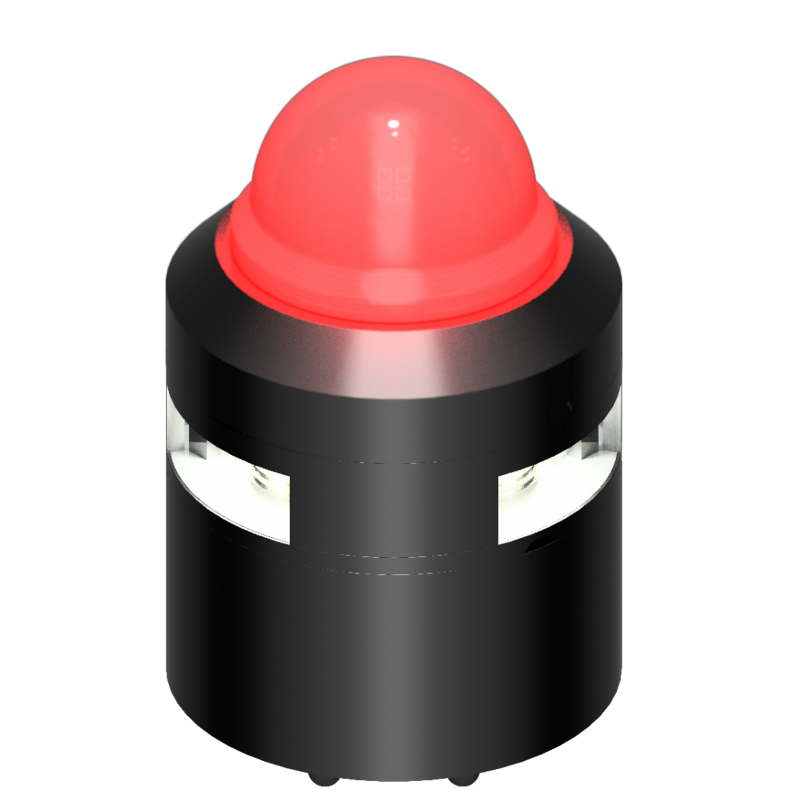

Lopolight 301-411+200-012G2S-B - Obstruction Light 3NM Red + 360° White/Strobe, Black
This dual-function navigation light combines a hemispherical red obstruction light with a 360° white strobe for anchor use. It is robust, horizontally mountable, and suitable for vessels of all sizes.
- Hemispherical Red Obstruction light 15cd/3nm
- 2nm White 360° (anchor) with strobe function
- Mounted on aluminium base 400-034 (CS/CD)
- M20 and M16 cable glands
- For 4.5 (5/32") to 13mm (1/2") cables
- Number: 301-411+200-012G2S-B
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 138,5mm
- Dimensions (imperial): Ø3.6" x 5.4"
- Certification: Certified by DNV
- Approved to IEC 60945
- Intensity: >15cd
- Visibility: 3nm
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438013759
- IP rating: IP68
- Power draw (W): 2.7
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 0
- Current consumption (mA @ 24VDC): 111
- Vessel size: All Sizes
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.4 Kg / 49.38 Oz
-
