SKU:
BP 301-141V+301-106ST-B
$ 5.845,98
1-2 weeks delivery time
-
+
The Lopolight 301-141V+301-106ST-B is a vertical-mounted combination light with a 135° red stop and double stern white light, offering 3NM visibility, IP68 protection, and reliable performance for larger vessels.
- Description
- Ask a Question
-

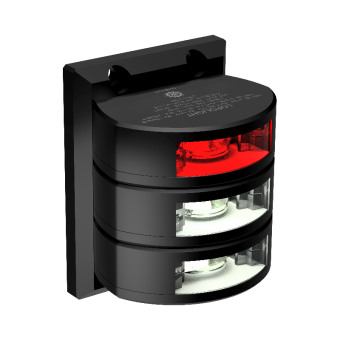

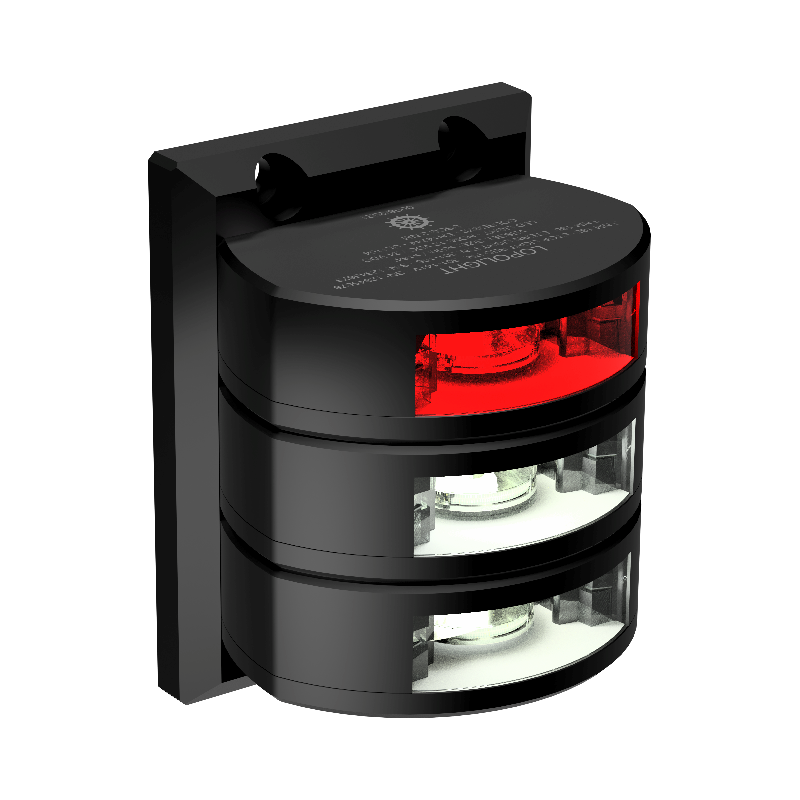

Lopolight 301-141V+301-106ST-B - Navigation Light 3NM 135° Red Stop + 3NM Double Stern, Vertical Mount, Black
This versatile navigation light combines a 135° red stop light and a double stern white light, ideal for larger vessels. Designed for vertical mounting, it ensures reliable visibility and long-lasting performance in marine conditions.
- Mounting: Mounted on back plate, vertical installation
- Cables: 3 x 2.5 meter cable
- Article number: 301-141V+301-106ST-B
- Light colors: Red, White
- Dimensions (metric): 113 x 72 x 86 mm
- Dimensions (imperial): 4.4" x 2.8" x 3.3"
- Certification: DNV certified
- Approved to: IEC 60945
- Visibility: 3 nautical miles
- Light intensity: >15 cd
- Operating temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32 VDC
- Power draw: 2.5 W
- Current consumption: 180 mA @ 12VDC, 60 mA @ 24VDC
- Connection: 0.7 m cable
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5 mm² (AWG22)
- Weight: 1.35 Kg / 47.61 Oz
- IP rating: IP68
- EAN: 5704438013728
- UPC Code: 879343013721
-
