SKU:
BP 301-140-RPM-PRO-I-EX
$ 6.130,93
1-2 weeks delivery time
-
+
The Lopolight 301-140-RPM-PRO-I-EX is a highly reliable navigation light suitable for vessels of all sizes, designed for extreme conditions including icy environments. It features ATEX Zone 1 & 2 certification, a built-in de-icing function, and dimmable brightness via RPM control, mounted horizontally on an aluminum base with HDPE plate, and operates at 10-32VDC with IP68 rating and a power draw of 3 W.
- Description
- Ask a Question
-

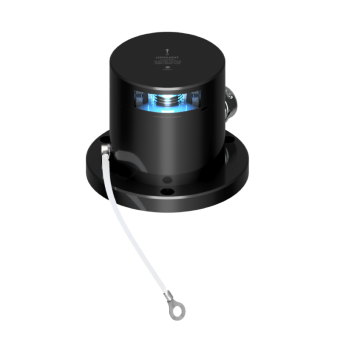

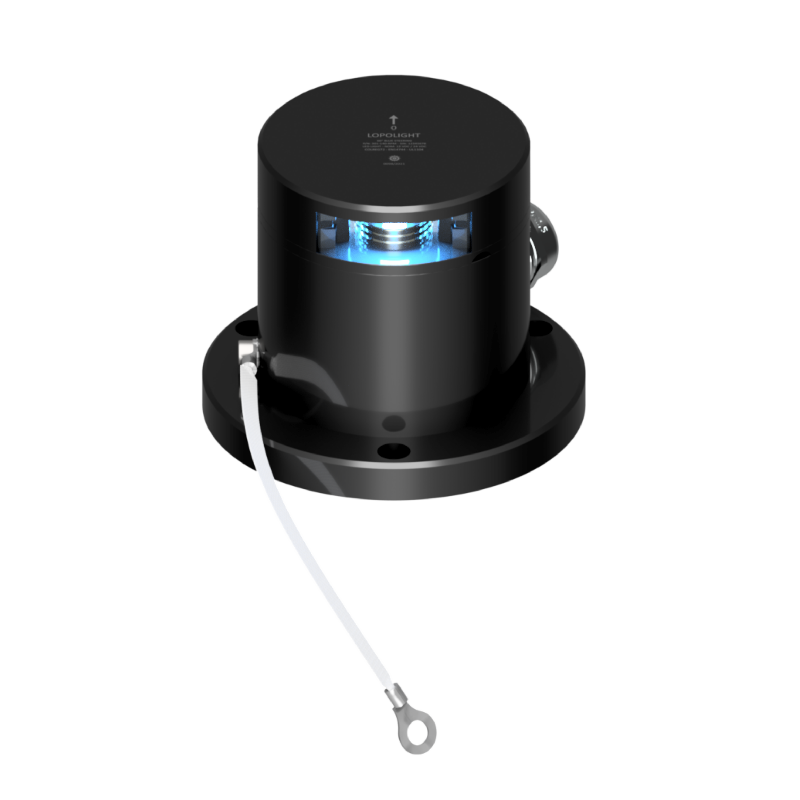

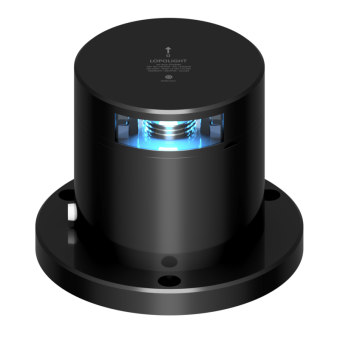

Lopolight 301-140-RPM-PRO-I-EX - Navigation Light 1NM 60° Blue Steering, Dimmable, Ex Zone 1&2, Ice-Class
This advanced navigation light provides reliable illumination for vessels of all sizes and is designed for extreme conditions, including icy environments.
- Certified for use in ATEX Zone 1 & 2
- Built-in de-icing function
- Dimmable via RPM control (requires Lopolight NLC)
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 301-140-RPM-PRO-I-EX
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6"" x 4""
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 1nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438040816
- IP rating: IP68
- Power draw: 3 W
- UPC Code: 879343040949
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 260
- Current consumption (mA @ 24VDC): 81
- Special attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: All sizes
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
-
