SKU:
BP 301-140-RPM-PRO-EX
$ 4.379,25
1-2 weeks delivery time
-
+
The Lopolight 301-140-RPM-PRO-EX is a 60° blue steering navigation light, dimmable via RPM control and certified for ATEX Zone 1 & 2. It offers 1NM visibility, horizontal mounting on a 400-037-B aluminum base, and operates on 10-32VDC with a 3W power draw, suitable for vessels of all sizes.
- Description
- Ask a Question
-

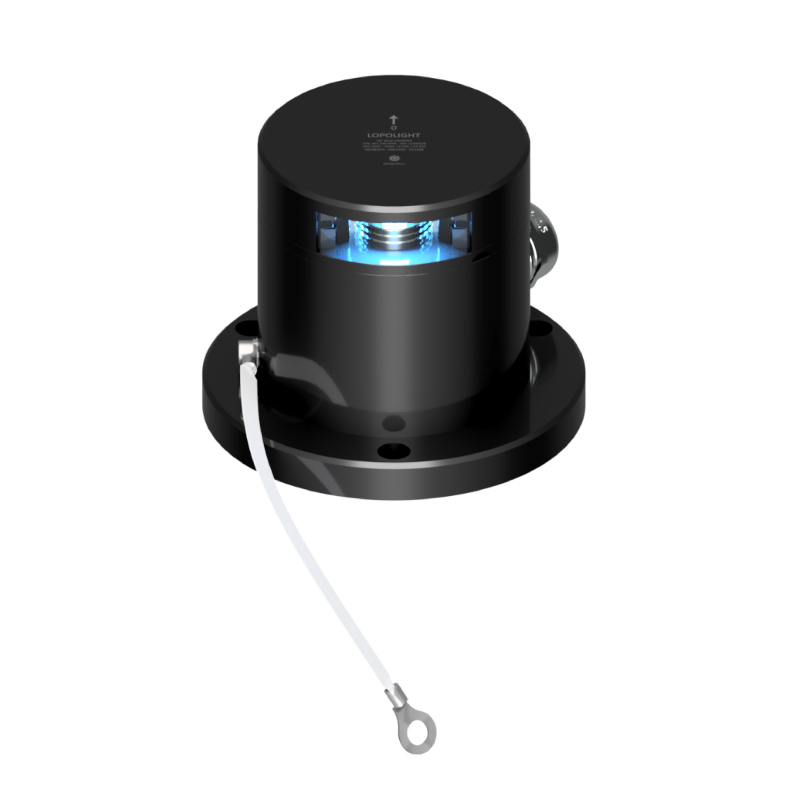

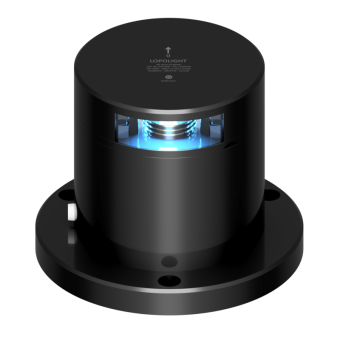

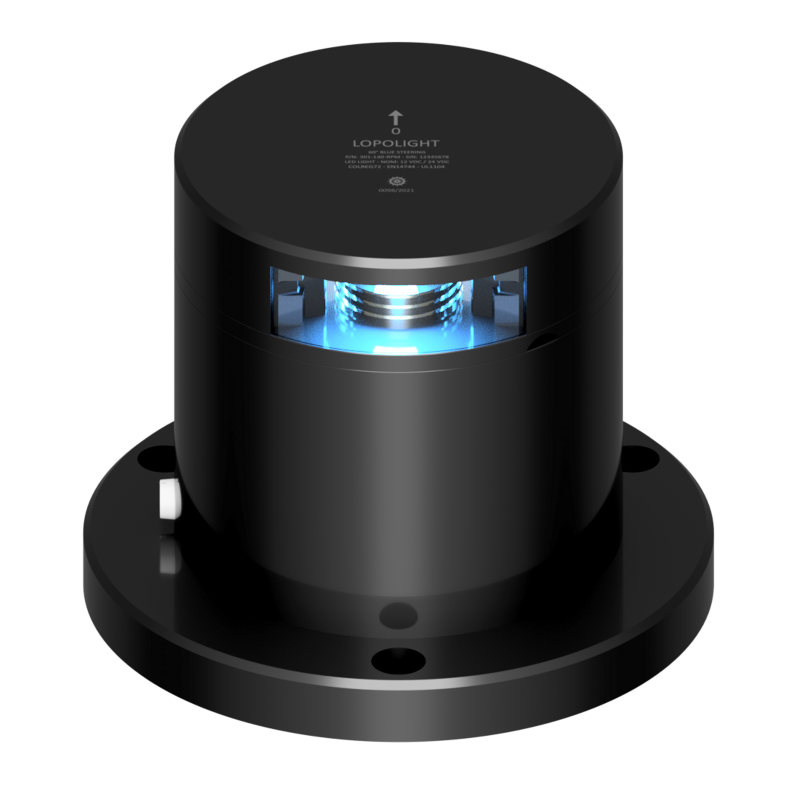

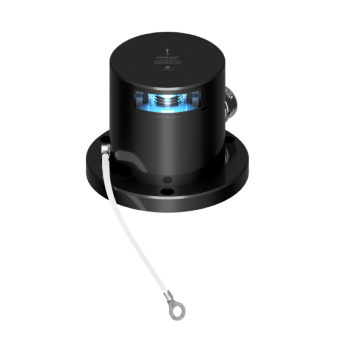

Lopolight 301-140-RPM-PRO-EX - Navigation Light 1NM 60° Blue Steering, Dimmable, Ex Zone 1&2
This navigation light provides high visibility for all vessel sizes while offering dimmable control and full ATEX Zone 1 & 2 certification. Designed for horizontal mounting, it combines durable materials with precise engineering.
- Certified for use in ATEX Zone 1 & 2
- Dimmable via RPM control (requires Lopolight NLC)
- Horizontally mounted on 400-037-B aluminum base (IP68)
- Cable direction side, includes HDPE Base Plate
- No cable glands or ground strap included
- Number: 301-140-RPM-PRO-EX
- Dimensions (metric): Ø92.5mm x 103.5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 1nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438038370
- IP rating: IP68
- Power draw: 3W
- Connection: Plug connector
- Current consumption: 260mA @ 12VDC, 81mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: All Sizes
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
- UPC Code: 879343038502
-
