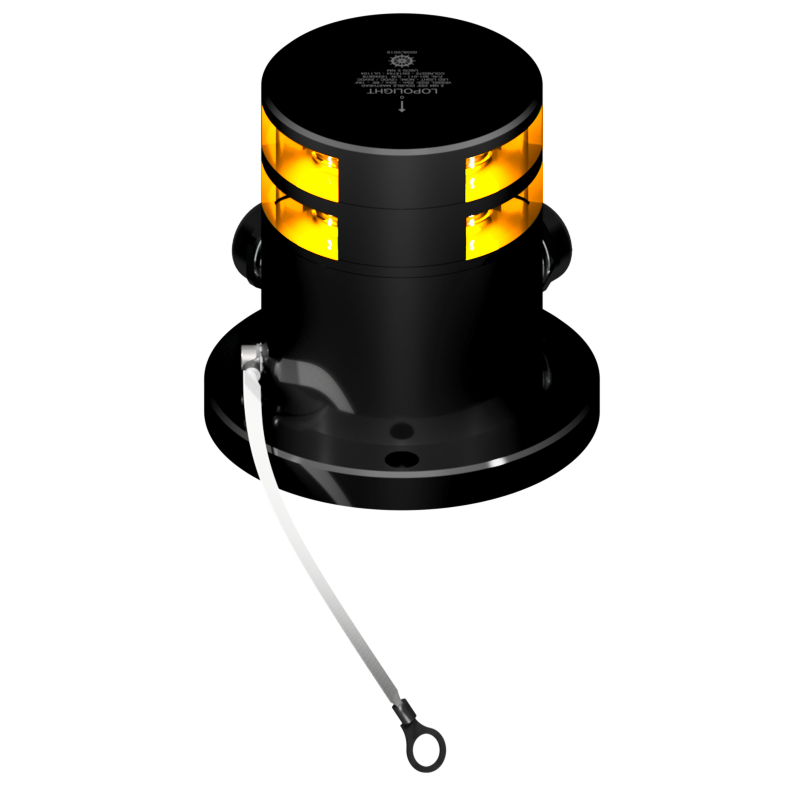

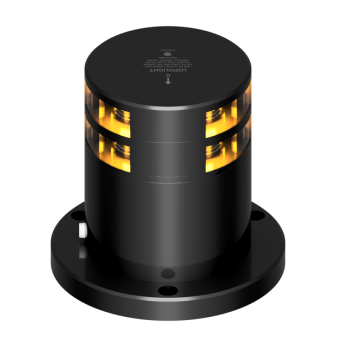

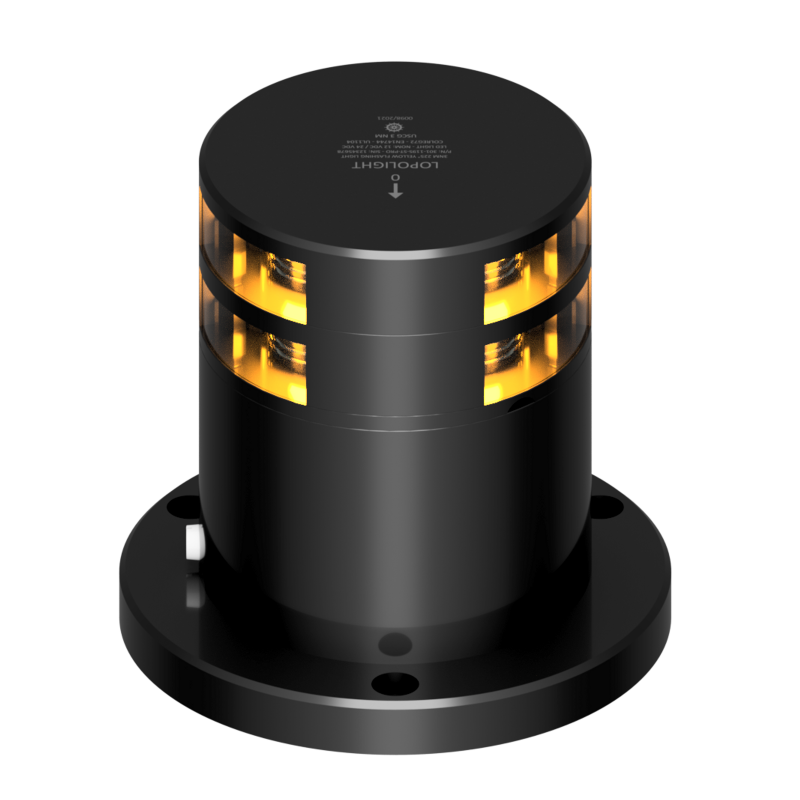

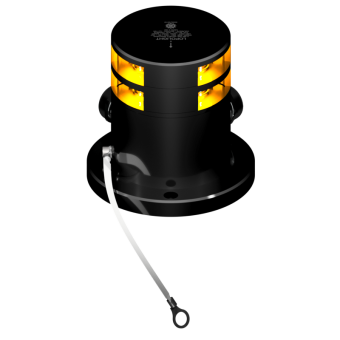

The Lopolight 301-119S-ST-PRO-I is a double yellow 225° navigation light with ice-class de-icing, providing 3NM visibility. It is ATEX Zone 1 certified, operates on 10-32VDC, draws 2W, and is horizontally mounted on a 400-037 EX/MIL base with side cable exit and HDPE base plate.
- Description
- Ask a Question
-
Lopolight 301-119S-ST-PRO-I - Navigation Light 3NM 225° Yellow, Double, 1Hz Fl, Ex Zone 1, Ice-Class
Engineered for extreme conditions, this navigation light includes a built-in de-icing function while maintaining 3NM visibility. Suitable for vessels over 50 meters, it offers horizontal mounting and full certification for hazardous areas.
- Number: 301-119S-ST-PRO-I-EX
- Light Color: Yellow
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3NM
- Included In Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2W
- Current Consumption: 215mA @ 12VDC, 90mA @ 24VDC
- Connection: Plug connector
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- IP Rating: IP68
- Weight: 1.10 Kg / 38.62 Oz
- Min. Feed Wire Gauge: 0.5mm² AWG22
- EAN: 5704438040809
- UPC Code: 879343040932
- Cable Direction: Side, includes HDPE base plate (no cable glands or ground strap included)
-
