SKU:
BP 301-119S-ST-PRO-I-EX
$ 4.400,41
1-2 weeks delivery time
-
+
The Lopolight 301-119S-ST-PRO-I-EX is a double yellow 225° 1Hz flashing navigation light with ice-class de-icing and ATEX Zone 1 & 2 certification. It operates on 10-32VDC, draws 2W, and is mounted horizontally on a 400-037 EX/MIL base with side cable exit and HDPE base plate, suitable for vessels over 50 meters.
- Description
- Ask a Question
-

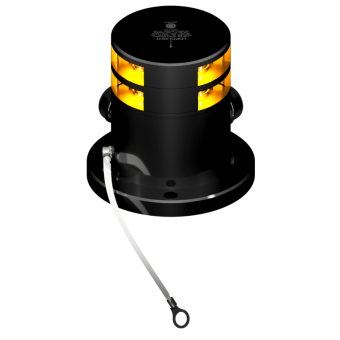

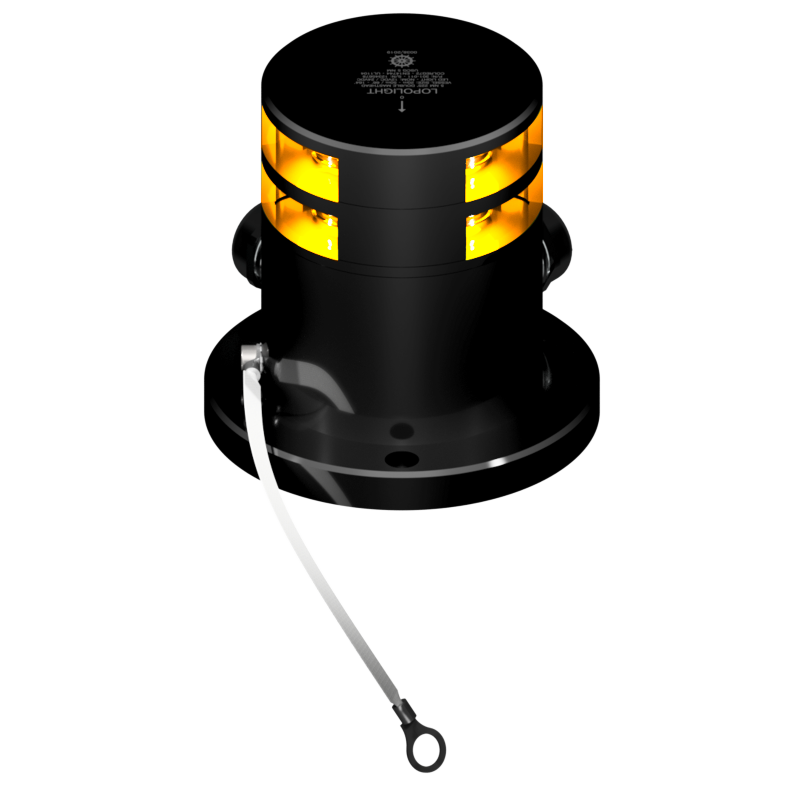

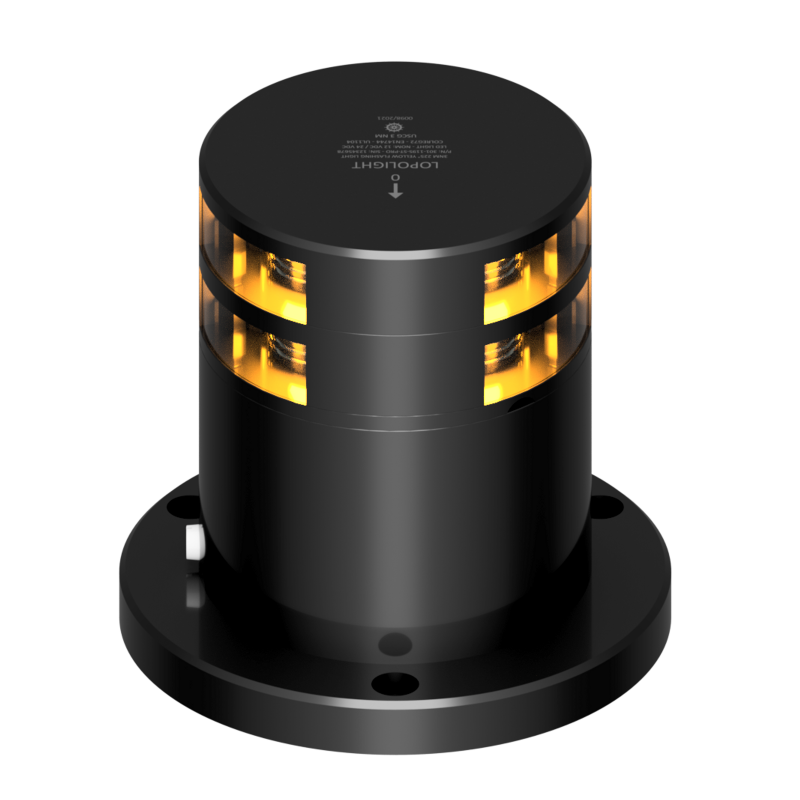

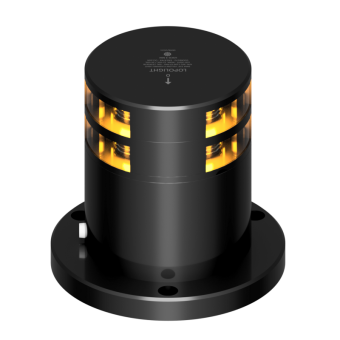

Lopolight 301-119S-ST-PRO-I-EX - Navigation Light 3NM 225° Yellow, Double, 1Hz Fl, Ex Zone 1, Ice-Class
This navigation light is designed for vessels over 50 meters, providing reliable yellow 3NM visibility with ice-class de-icing capabilities and ATEX Zone 1 certification for hazardous areas.
- Certified for use in ATEX Zone 1 & 2
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, including HDPE base plate
- No cable glands or ground strap included
- Number: 301-119S-ST-PRO-I-EX
- Light Color: Yellow
- Dimensions metric: Ø92,5mm x 125,5mm
- Dimensions imperial: Ø3.6" x 4.9"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3NM
- Included in Package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 2W
- Connection: Plug connector
- Current consumption (mA @ 12VDC): 215
- Current consumption (mA @ 24VDC): 90
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.10 Kg / 38.62 Oz
- EAN: 5704438040809
- UPC Code: 879343040932
- IP rating: IP68
-
