SKU:
BP 301-119S-ST-PRO-EX
$ 3.143,16
1-2 weeks delivery time
-
+
The Lopolight 301-119S-ST-PRO-EX is a double yellow 225° navigation light with 1Hz flashing and 3NM visibility, designed for vessels over 50 meters in hazardous areas. It is ATEX and IEC Ex certified, operates on 10-32VDC with a 2W power draw, and includes horizontal mounting on a 400-037 base with side cable exit and HDPE base plate.
- Description
- Ask a Question
-

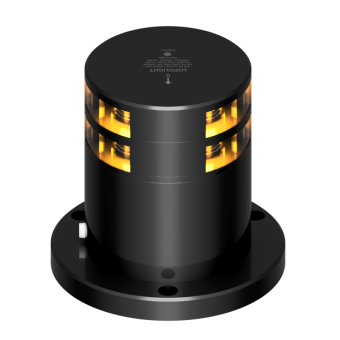

Lopolight 301-119S-ST-PRO-EX - Navigation Light 3NM 225° Yellow, Double, 1Hz Fl, Ex Zone 1&2
This robust navigation light is designed for vessels over 50 meters, providing clear 3NM visibility with high reliability in hazardous zones. Perfect for horizontal installation on aluminum bases, it ensures compliance with international maritime safety standards.
- Number: 301-119S-ST-PRO-EX
- Light Color: Yellow
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3NM
- Included In Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2W
- Current Consumption: 215mA @ 12VDC, 90mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- IP Rating: IP68
- Weight: 1.10 Kg / 38.62 Oz
- Min. Feed Wire Gauge: 0.5mm² AWG22
- EAN: 5704438038356
- UPC Code: 879343038489
- Cable Direction: Side, includes HDPE base plate (no cable glands or ground strap included)
-
