SKU:
BP 301-115-PRO-EX
$ 1.841,44
1-2 weeks delivery time
-
+
The Lopolight 301-115-PRO-EX is a single green 360° navigation light with 3NM visibility, certified for ATEX Zone 1 & 2. It operates on 10-32VDC, draws 5W, and is made of black hard coat anodized aluminum with a PMMA lens. Horizontal mounting on a 400-037-B aluminum base is included, suitable for vessels over 50 meters.
- Description
- Ask a Question
-

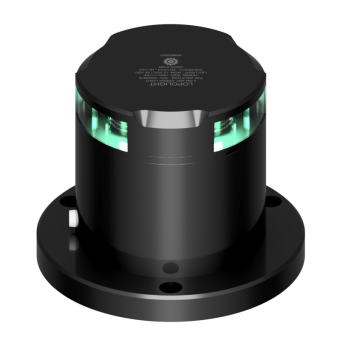

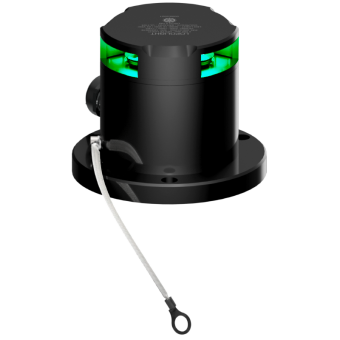

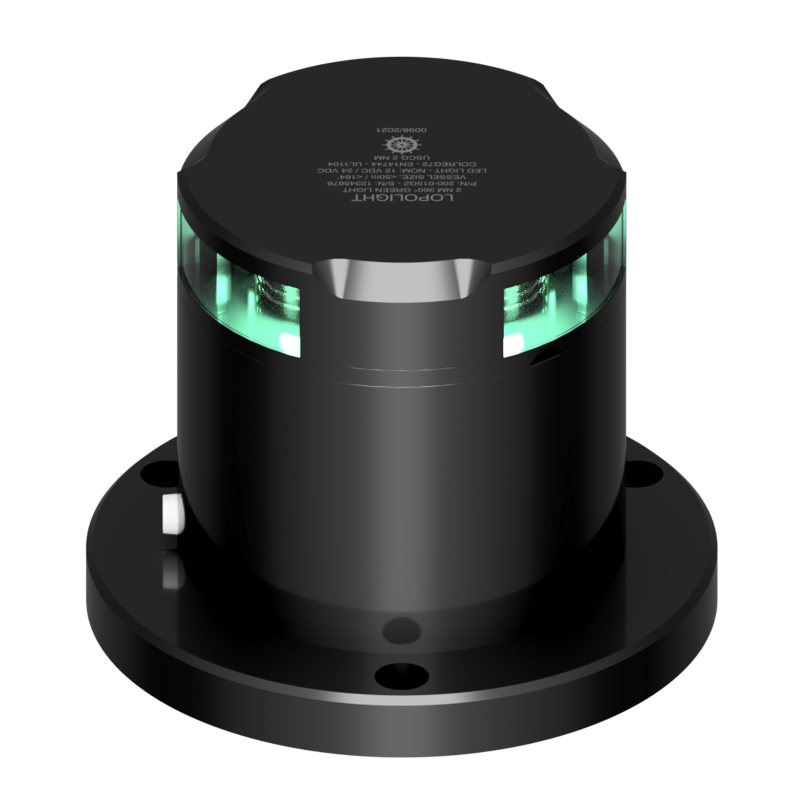

Lopolight 301-115-PRO-EX - Navigation Light 3NM 360° Green, Single, Ex Zone 1&2
This navigation light provides reliable 360° green illumination for vessels over 50 meters, certified for hazardous zones.
- Number: 301-115-PRO-EX
- Light Color: Green
- Dimensions: Ø92,5mm x 103,5mm (Ø3.6" x 4")
- Certification: Approved by DNV, Dancert (Ex mb eb IIB T5 Gb), and ExVeritas (PQAN/UKQAN/QAR). Certificates available at Lopolight Support
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 5W
- Current Consumption: 450mA @ 12VDC, 225mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.14 Kg (40.21 Oz)
- EAN: 5704438040854
- UPC Code: 879343040987
-
