SKU:
BP 301-115-PRO-EX 180
$ 1.841,44
1-2 weeks delivery time
-
+
The Lopolight 301-115-PRO-EX 180 is a 180° green navigation light for horizontal mounting on large vessels, providing 3NM visibility. It is certified for ATEX Zone 1 & 2, operates on 10-32VDC with a 3W power draw, and is constructed from black anodized aluminum with a PMMA lens.
- Description
- Ask a Question
-

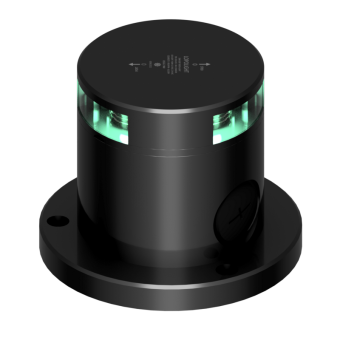

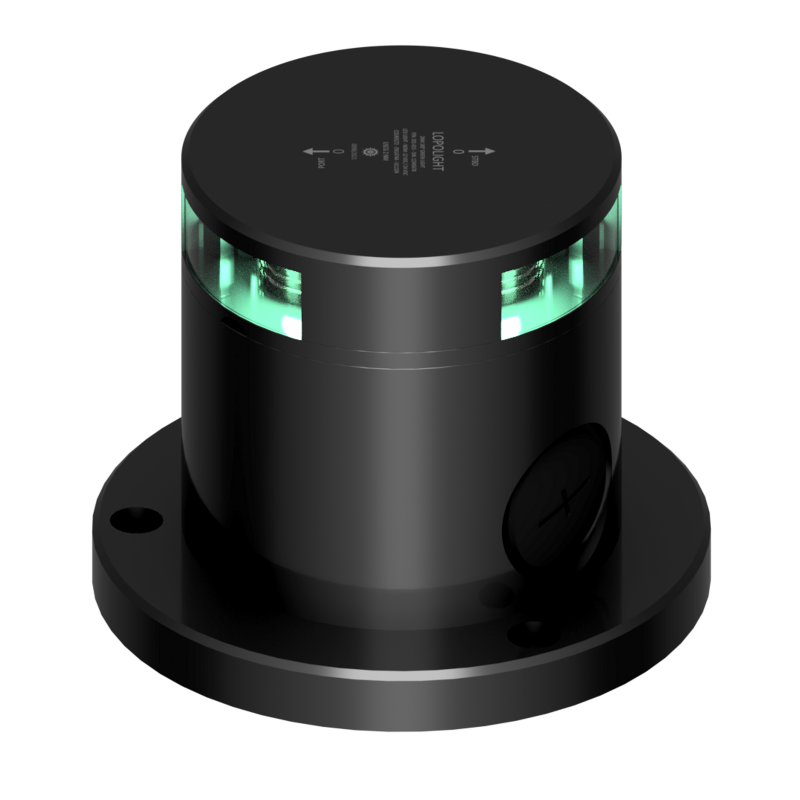

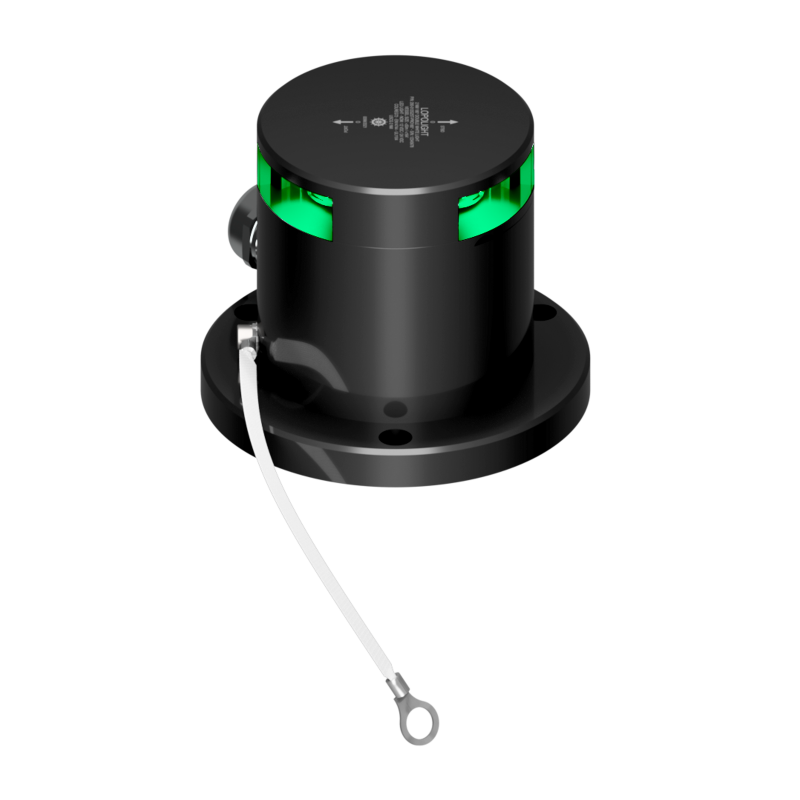

Lopolight 301-115-PRO-EX 180 - Navigation Light 3NM 180° Green, Single, Ex Zone 1&2
This 180° green navigation light is designed for safe horizontal mounting on large vessels, meeting ATEX Zone 1 & 2 standards.
- Number: 301-115-PRO-EX 180
- Light Color: Green
- Dimensions: Ø92,5mm x 103,5mm (Ø3.6" x 4")
- Certification: Approved by DNV, Dancert (Ex mb eb IIB T5 Gb), and ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 3W
- Current Consumption: 280mA @ 12VDC, 130mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.14 Kg (40.21 Oz)
- EAN: 5704438040885
- UPC Code: 879343041014
-
