SKU:
BP 301-114ST-WH
$ 3.352,37
1-2 weeks delivery time
-
+
The Lopolight 301-114ST-WH is a double red 360° navigation light with a white ceramic coating for corrosion resistance. It operates on 10-32VDC, draws 3W, and is mounted horizontally with a downward cable exit. The package includes the light, black PE baseplate, optional white ceramic baseplate, and mounting screws, making it suitable for vessels over 50 meters.
- Description
- Ask a Question
-

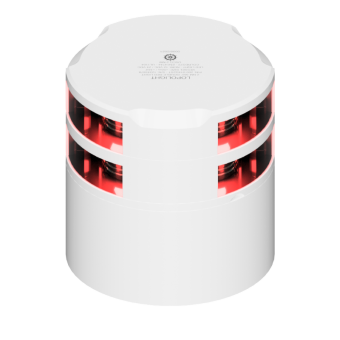

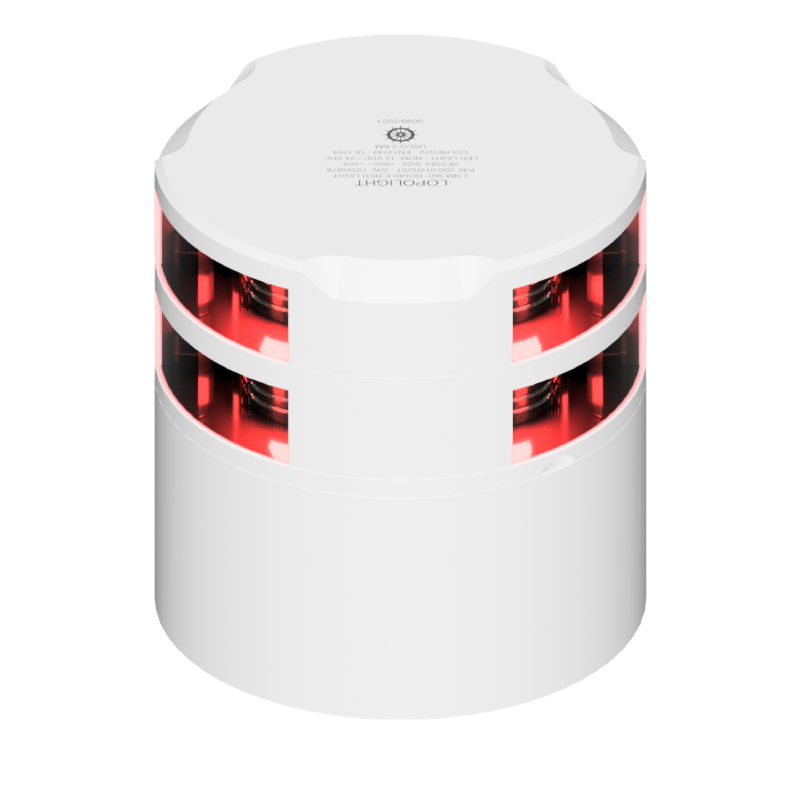

Lopolight 301-114ST-WH - Navigation Light 3NM 360° Red, Double, White Ceramic Coated
This navigation light features a white ceramic coating and aluminum mount for a corrosion-resistant finish, ideal for high-visibility navigation on large vessels. Cable exits downward for easy installation, with optional baseplate colors available.
- White ceramic finish with aluminum mount base
- Cable exits downward only
- Included: Black PE baseplate; Option: White ceramic coated baseplate
- Product Number: 301-114ST-WH
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 96.5mm
- Dimensions (imperial): Ø3.6" x 3.8"
- Certification: Wheelmarked, based on DNV approval
- Intensity: >15cd
- Visibility: 3NM
- Operating Voltage: 10-32VDC
- Current Consumption: 210 mA @ 12VDC, 120 mA @ 24VDC
- Power Draw: 3 W
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP Rating: IP68
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 x 8 mm), Installation guide
- EAN: 5704438039551
- UPC Code: 879343039684
- Connection: Plug connector
-
