SKU:
BP 301-114ST-PRO-I-EX
$ 4.686,75
1-2 weeks delivery time
-
+

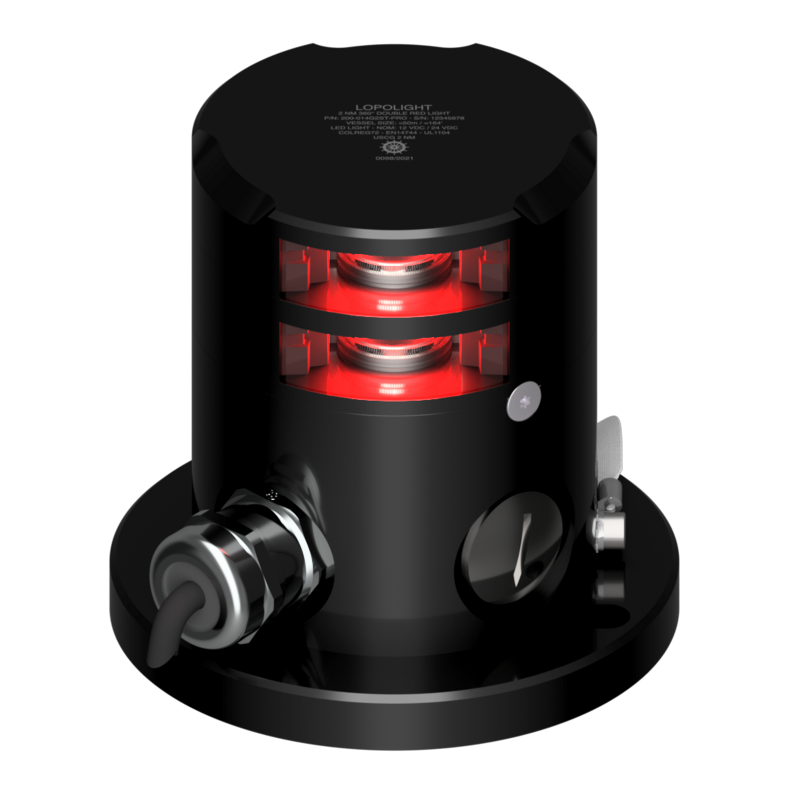

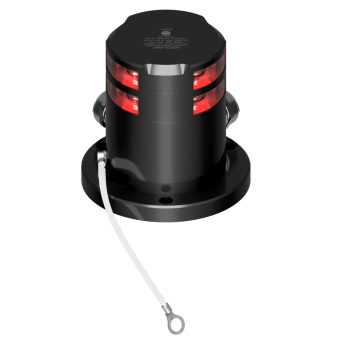

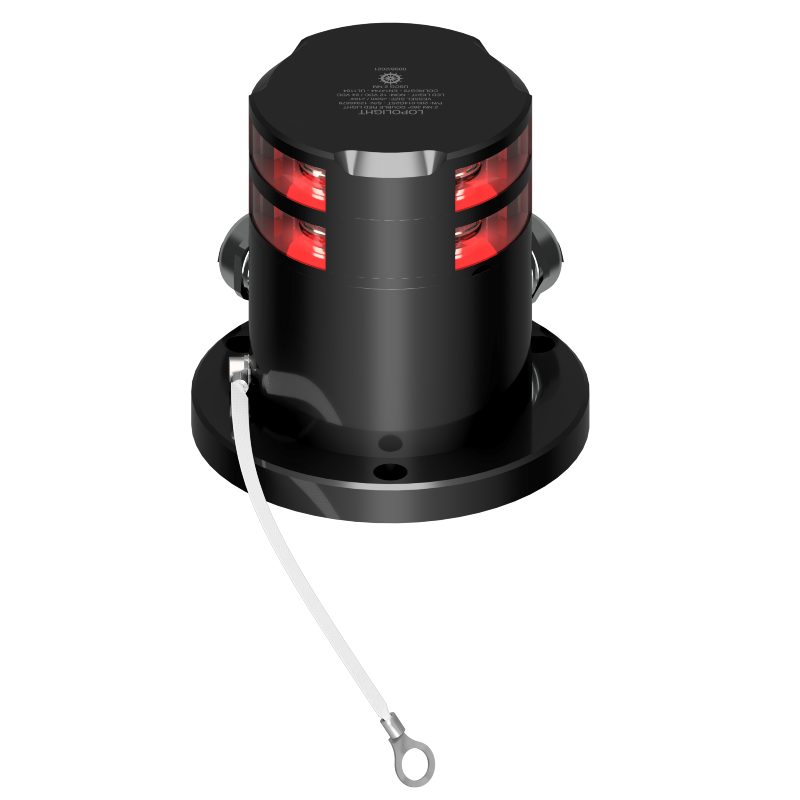

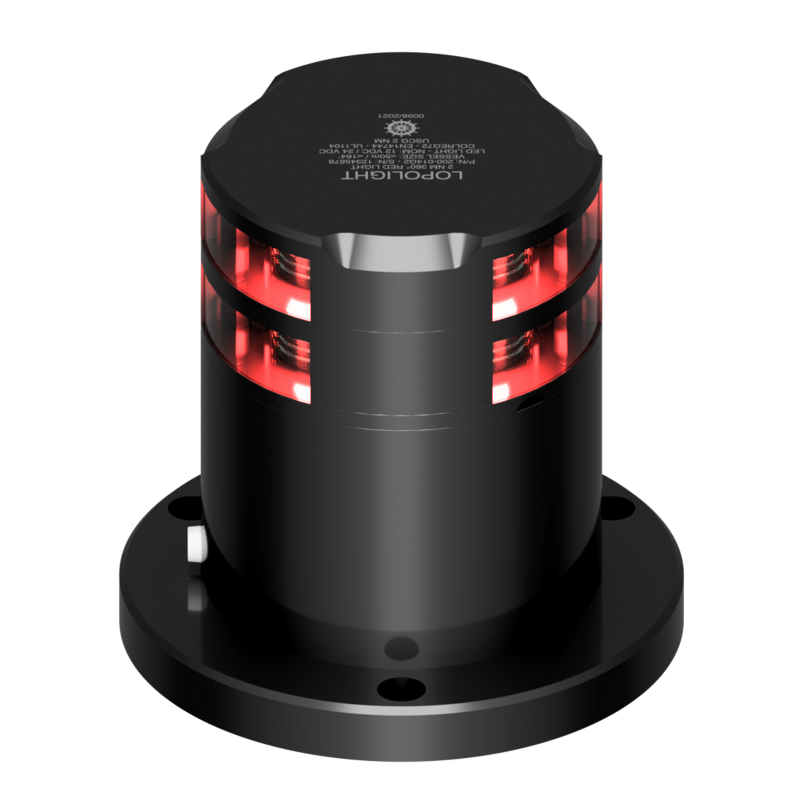

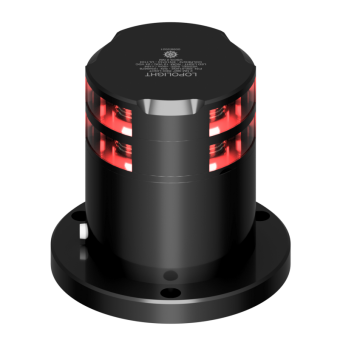

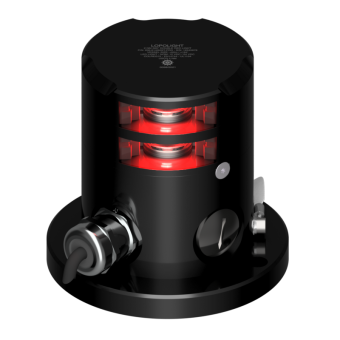

The Lopolight 301-114ST-PRO-I-EX is a double red 360° navigation light with a built-in ice-class de-icing function, certified for ATEX Zone 1 & 2. It operates on 10-32VDC, draws 4W, and is made of black hard coat anodized aluminum with a PMMA lens. It is mounted horizontally on a 400-037 EX/MIL base and includes a side cable exit with HDPE base plate, suitable for vessels over 50 meters.
- Description
- Ask a Question
-
Lopolight 301-114ST-PRO-I-EX - Navigation Light 3NM 360° Red, Double, Ex Zone 1&2, Ice-Class
This high-performance navigation light is designed for vessels over 50 meters, combining robust ATEX-certified safety features with an integrated de-icing function. It ensures maximum visibility and reliability in extreme maritime conditions.
- Certified for ATEX Zone 1 & 2
- Built-in de-icing system for ice-class operation
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable exits from the side; HDPE base plate included
- No cable glands or ground strap included
- Product Number: 301-114ST-PRO-I-EX
- Light Color: Red
- Dimensions (metric): Ø92.5mm x 125.5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Visibility: 3NM
- Operating Voltage: 10-32VDC
- Current Consumption: 340 mA @ 12VDC, 190 mA @ 24VDC
- Power Draw: 4 W
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- IP Rating: IP68
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 and ATEX Zone 1 certified
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.53 Kg / 53.96 Oz
- Included in Package: 1 Navigation light, Installation guide
- EAN: 5704438040762
- UPC Code: 879343040895
- Connection: Plug connector
-
