SKU:
BP 301-114ST-PRO-EX
$ 3.348,08
1-2 weeks delivery time
-
+
The Lopolight 301-114ST-PRO-EX is a double red navigation light with 360° visibility up to 3NM, designed for vessels over 50 meters in hazardous environments. It is ATEX and IEC Ex Zone 1 certified, operates on 10-32VDC with a 4W power draw, and is made of black anodized aluminum with PMMA lens. Horizontal mounting on a 400-037-B aluminum base is provided, and the package includes the light and installation guide.
- Description
- Ask a Question
-

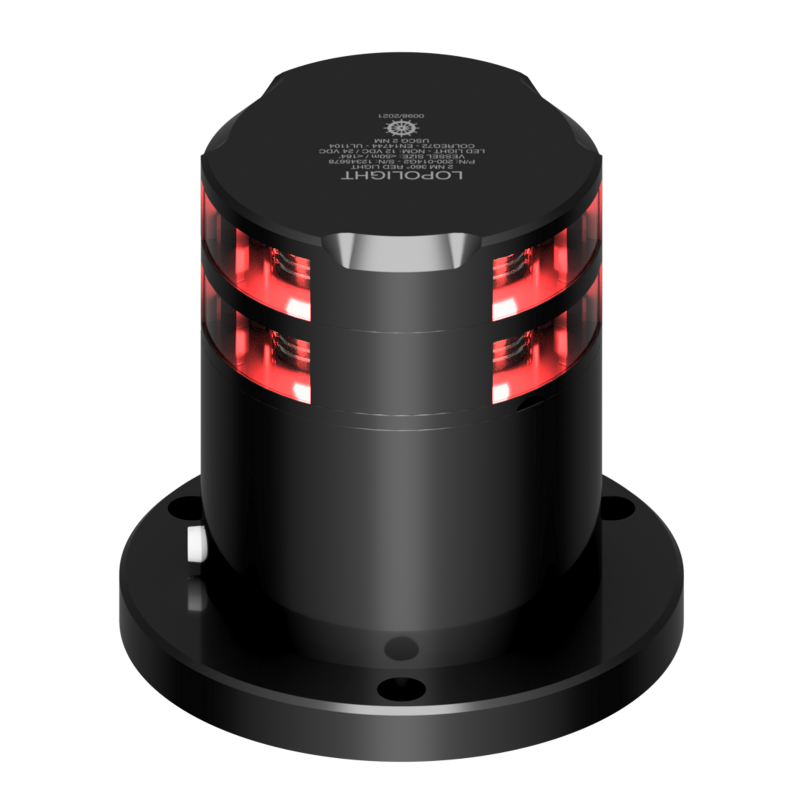

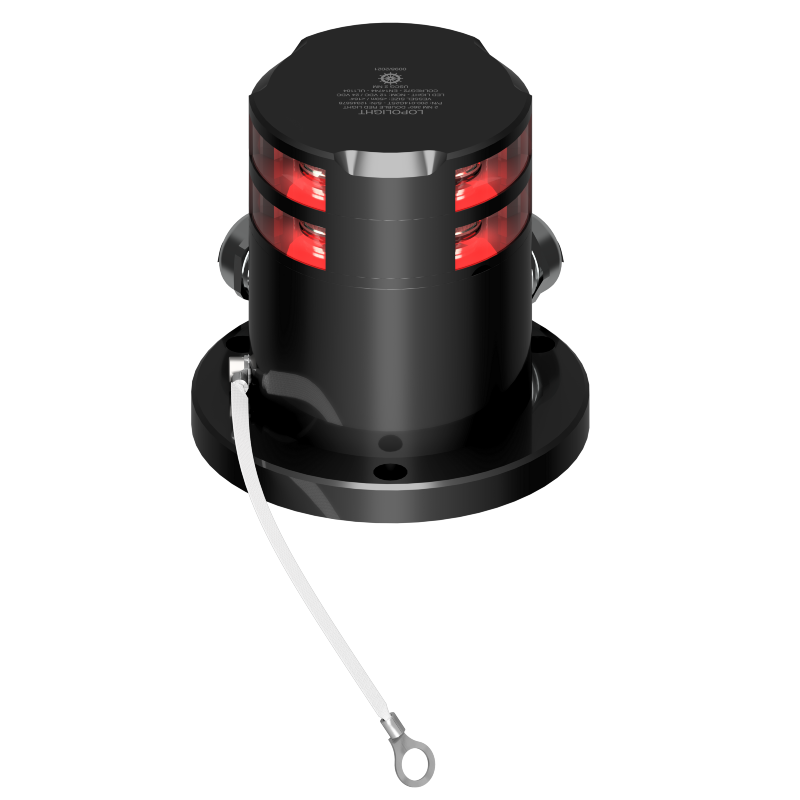

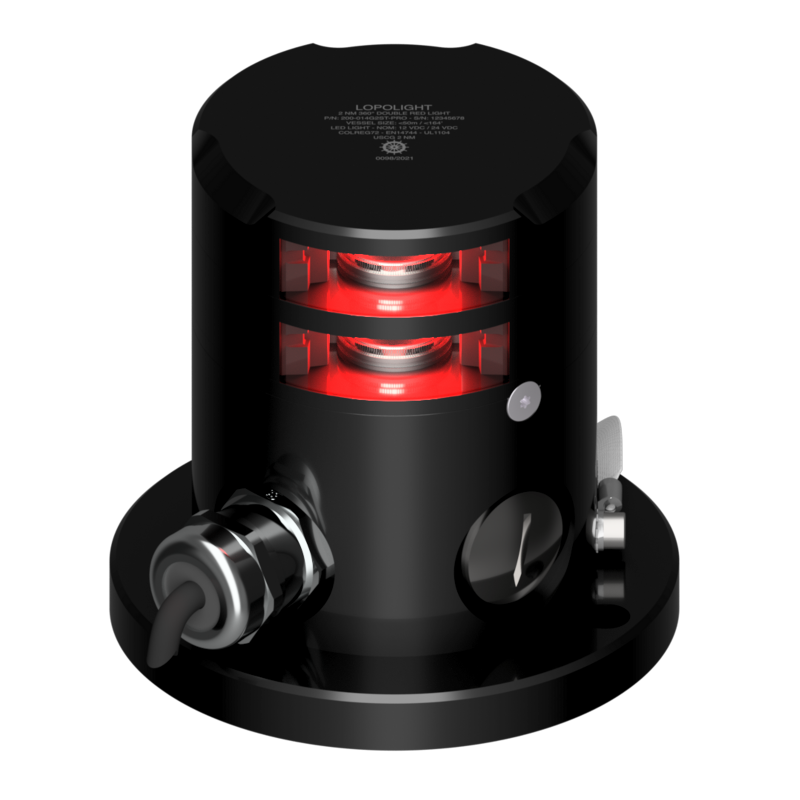

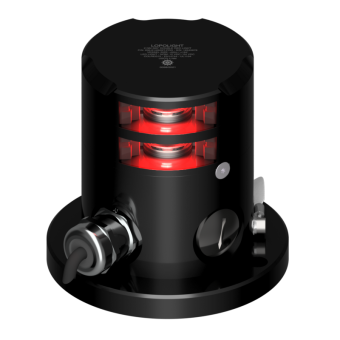

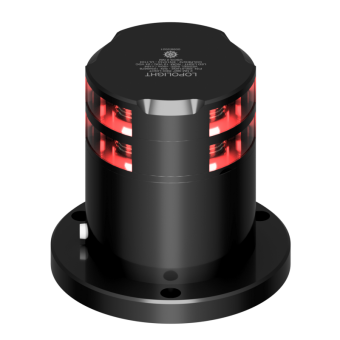

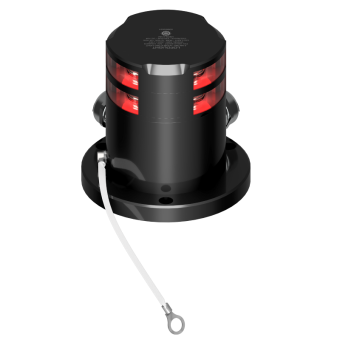

Lopolight 301-114ST-PRO-EX - Navigation Light 3NM 360° Red, Double, Black Anodized, Ex Zone 1&2
Designed for demanding environments, this navigation light is certified for ATEX Zone 1 & 2 and offers full 360° red illumination. It's suitable for vessels over 50 meters and ensures reliable performance even in harsh conditions.
- Certification: DNV, Dancert (Approved to: Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Mounting: Horizontally on 400-037-B aluminum base (IP68)
- Cable direction: Side
- Includes HDPE base plate
- No cable glands or ground strap included
- Light color: Red
- Dimensions: Ø92.5mm x 125.5mm (Ø3.6" x 4.9")
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Package includes: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating voltage: 10-32VDC
- Power draw: 4W
- Connection: Plug connector
- Current consumption: 340mA @12VDC, 190mA @24VDC
- Special attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.45 Kg / 51.14 Oz
- EAN: 5704438039896
- UPC Code: 879343040024
-
