SKU:
BP 301-114-WH
$ 1.843,78
1-2 weeks delivery time
-
+
The Lopolight 301-114-WH is a durable red navigation light with a white ceramic finish, providing 360° visibility up to 3NM. Designed for vessels over 50 meters, it features horizontal mounting with an optional ceramic baseplate. The light operates on 10-32VDC, draws 3W, and is made from ceramic-coated aluminum and PMMA lens. It is approved by DNV and other certifications, and the package includes the navigation light, mounting screws, and installation guide.
- Description
- Ask a Question
-

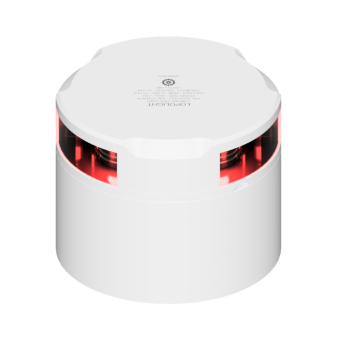

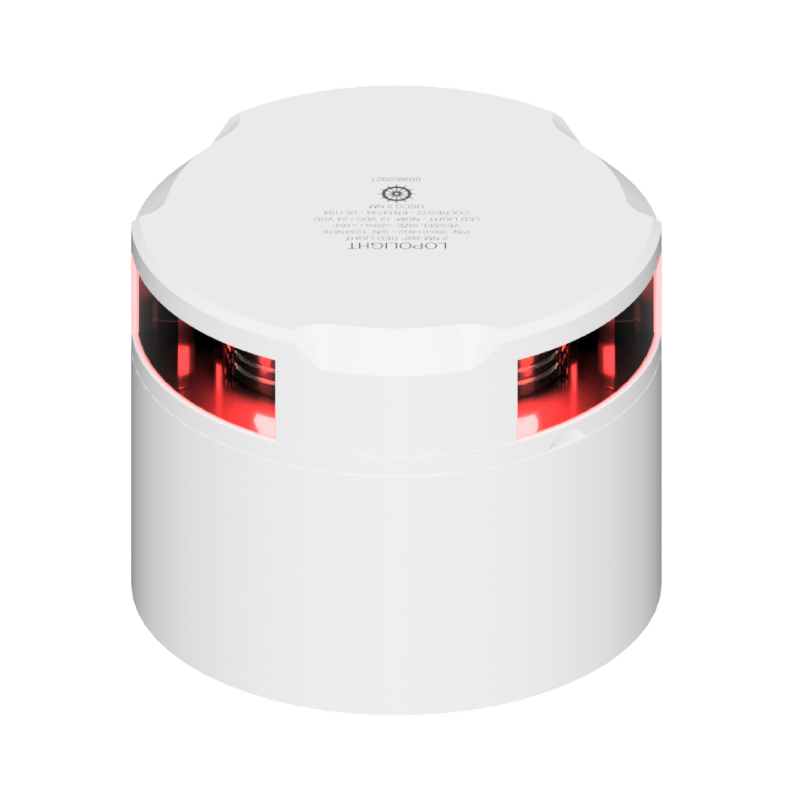

Lopolight 301-114-WH - Navigation Light 3NM 360° Red, White Ceramic Coated
Durable navigation light with a sleek white ceramic finish, suitable for vessels over 50 meters, with standard horizontal mounting and optional white ceramic baseplate.
- Number: 301-114-WH
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Wheelmarked, based on DNV approval
- Intensity: >15cd
- Visibility: 3nm
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Included in Package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic-coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 3W
- Connection: Plug connector
- Current Consumption: 210 mA @ 12VDC, 120 mA @ 24VDC
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1 Kg / 35.27 Oz
- Cable Direction: Down only, includes black PE baseplate (optional white ceramic coated baseplate)
- EAN: 5704438039544
- UPC Code: 879343039677
-
