The Lopolight 301-114-PRO-I-EX is a high-performance red navigation light with 360° visibility up to 3NM, designed for harsh marine environments. It is certified for ATEX Zone 1 & 2 and features a built-in de-icing function, making it suitable for vessels over 50 meters. The light operates on 10-32VDC, draws 4W, and is constructed from black hard coat anodized aluminum with a PMMA lens. It includes a horizontal mounting on a 400-037 EX/MIL aluminum base and comes with an installation guide.
- Description
- Ask a Question
-

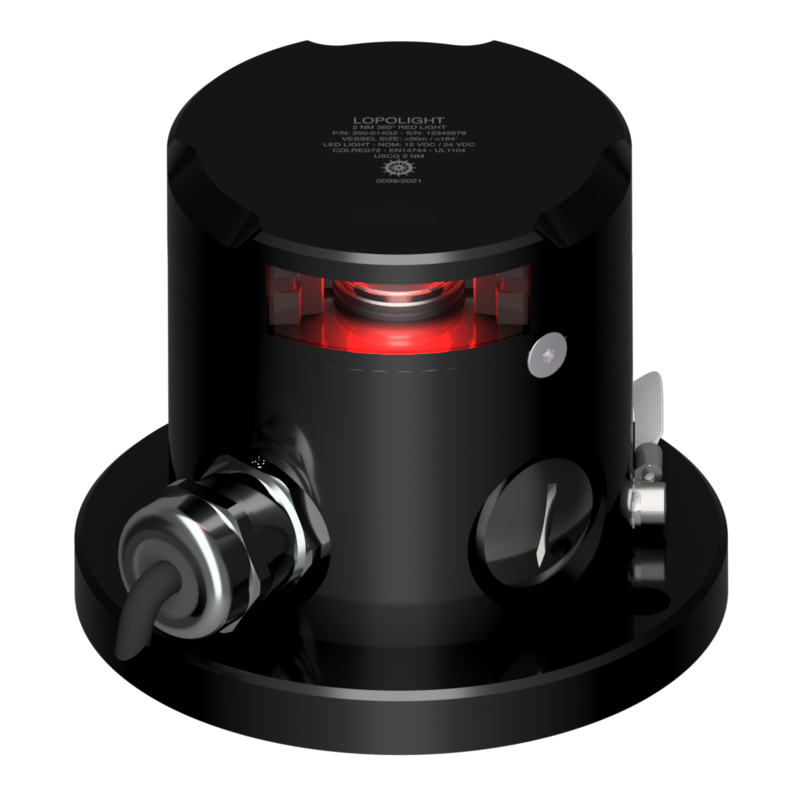

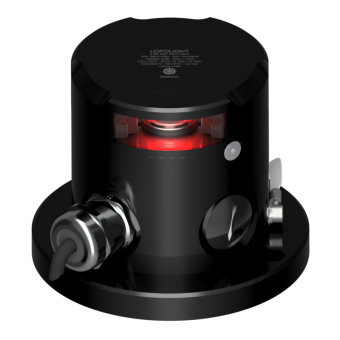

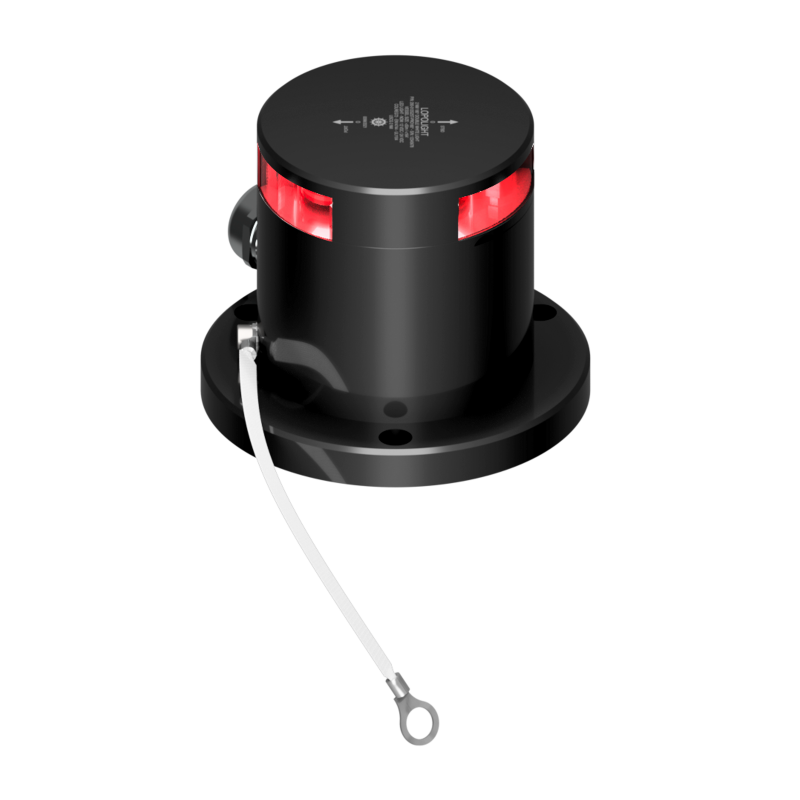

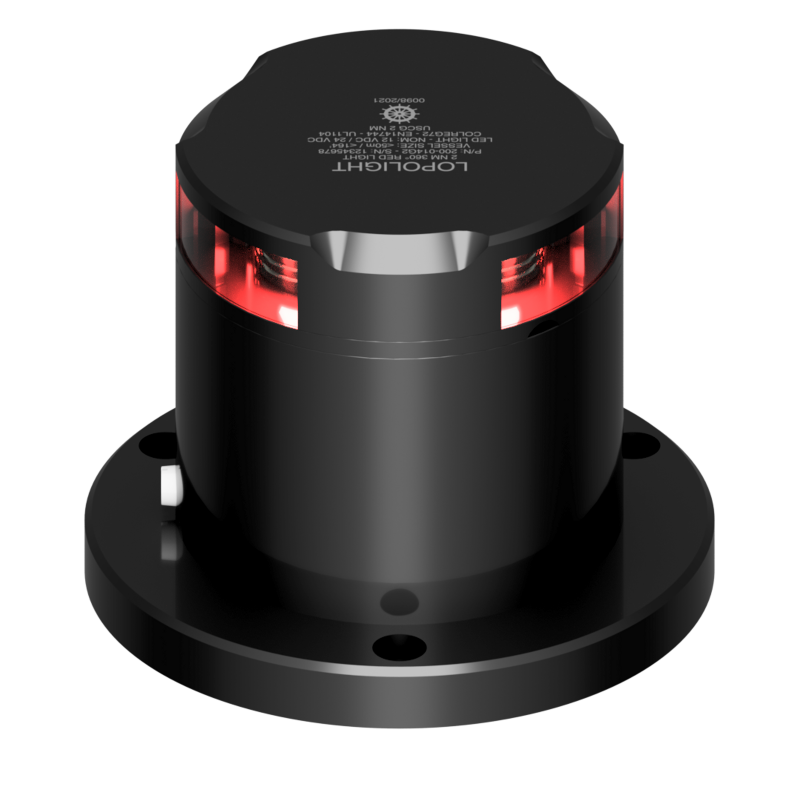

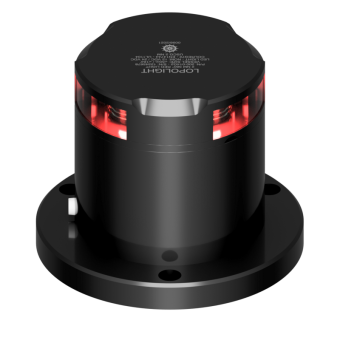

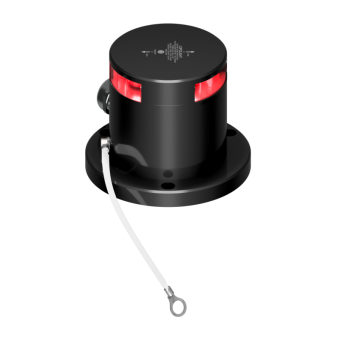

Lopolight 301-114-PRO-I-EX - Navigation Light 3NM 360° Red, Single, Ex Zone 1&2, Ice-Class
High-performance navigation light designed for harsh marine environments, certified for ATEX Zone 1 & 2 use and equipped with a built-in de-icing function.
- Number: 301-114-PRO-I-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Visibility: 3nm
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037 EX/MIL aluminum base
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 4W
- Connection: Plug connector
- Current Consumption: 340 mA @ 12VDC, 190 mA @ 24VDC
- Special Attributes: Ice-class defroster, IEC Ex Zone 1 and ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.14 Kg / 40.21 Oz
- Cable Direction: Side, includes HDPE base plate (no cable glands or ground strap)
- EAN: 5704438040786
- UPC Code: 879343040918
-
