SKU:
BP 301-114-PRO-EX 180
$ 1.841,44
1-2 weeks delivery time
-
+
The Lopolight 301-114-PRO-EX 180 is a single red 180° navigation light for large vessels, offering targeted 3NM visibility. It is certified for ATEX Zone 1 & 2, mounts horizontally on an aluminum base, and operates at 10-32VDC.
- Description
- Ask a Question
-

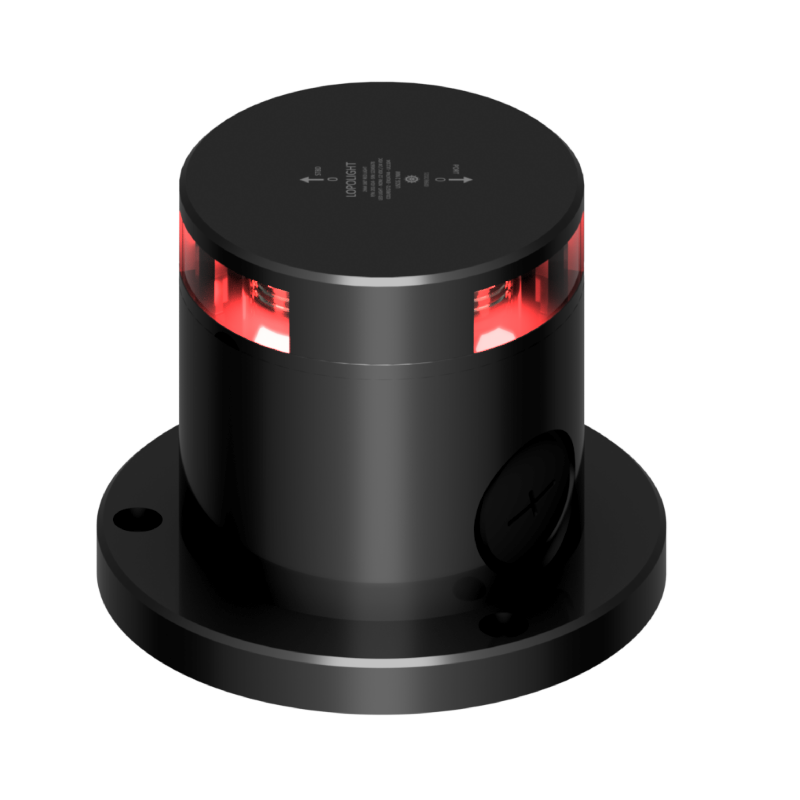

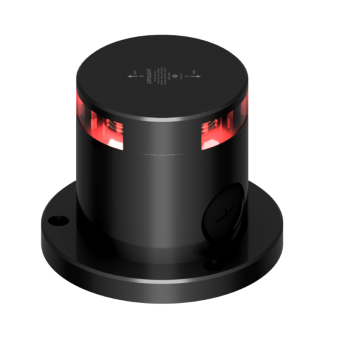

Lopolight 301-114-PRO-EX 180 - Navigation Light 3NM 180° Red, Single, Ex Zone 1&2
This 180° navigation light is suitable for large vessels, providing targeted visibility with the same rugged certification and construction as its 360° counterpart.
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Light Color: Red
- Visibility: 3 nautical miles
- Intensity: >15cd
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Current Consumption: 210 mA @ 12VDC, 100 mA @ 24VDC
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Dimensions: Ø92.5mm x 103.5mm (Ø3.6" x 4")
- Weight: 1.14 Kg (40.21 Oz)
- IP Rating: IP68
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Included in Package: 1 navigation light, installation guide
- EAN: 5704438040878 | UPC: 879343041007
-
