SKU:
BP 301-113ST-PRO-I-EX
$ 4.687,30
1-2 weeks delivery time
-
+
The Lopolight 301-113ST-PRO-I-EX is a double yellow towing light for explosive environments with ice-class functionality, certified for ATEX Zone 1 & 2. It provides 3NM visibility, mounts horizontally on an aluminum base, and comes with a de-icing function and installation guide.
- Description
- Ask a Question
-

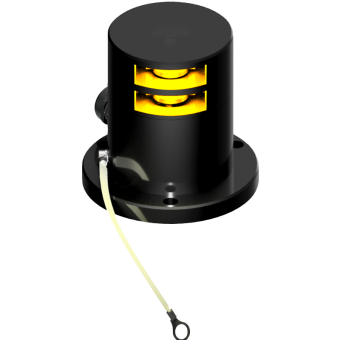

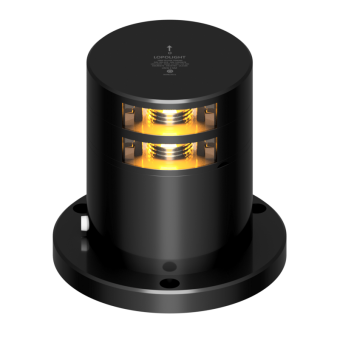

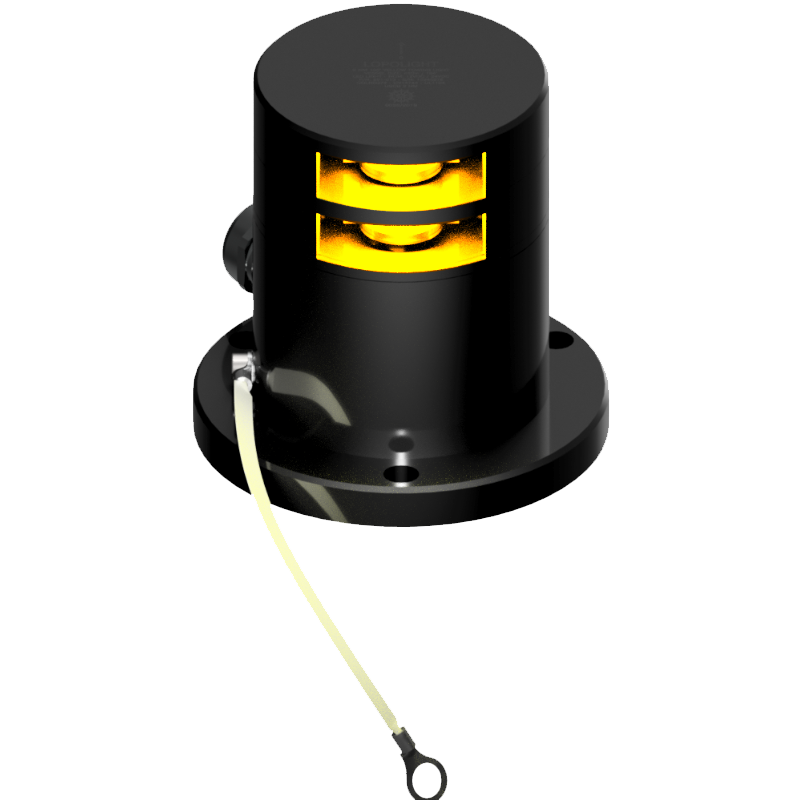

Lopolight 301-113ST-PRO-I-EX - Navigation Light 3NM 135° Double Yellow Towing, Ex Zone 1&2, Ice-Class
This navigation light is engineered for explosive environments (ATEX Zone 1 & 2) and ice-class conditions, ensuring safe and continuous operation with high visibility for vessels over 50 meters.
- Number: 301-113ST-PRO-I-EX
- Light Color: Yellow
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Intensity: >15cd
- Visibility: 3nm
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Operating Temperature: -25°C to 55°C
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Current Consumption @12VDC: 154 mA
- Current Consumption @24VDC: 95 mA
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Vessel Size: Over 50M
- Mounting: Horizontal on 400-037 EX/MIL aluminum base, cable direction side
- Included: 1 navigation light, installation guide (no cable glands or ground strap)
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Connection: Plug connector
- Special Attributes: Ice-class defroster, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Weight: 1.4 Kg / 49.38 Oz
- EAN: 5704438040731
- UPC Code: 879343040864
- IP Rating: IP68
-
