SKU:
BP 301-113ST-PRO-EX
$ 3.348,08
1-2 weeks delivery time
-
+
The Lopolight 301-113ST-PRO-EX is an Ex-certified double yellow towing light designed for hazardous environments (ATEX Zone 1 & 2). It provides 3NM visibility, mounts horizontally on an aluminum base, and includes an installation guide.
- Description
- Ask a Question
-

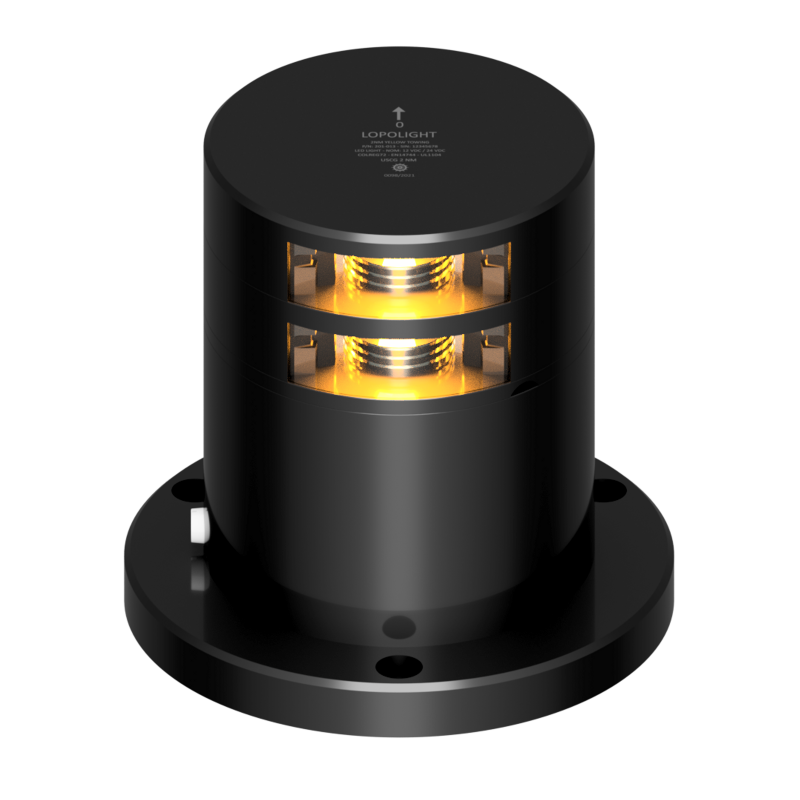

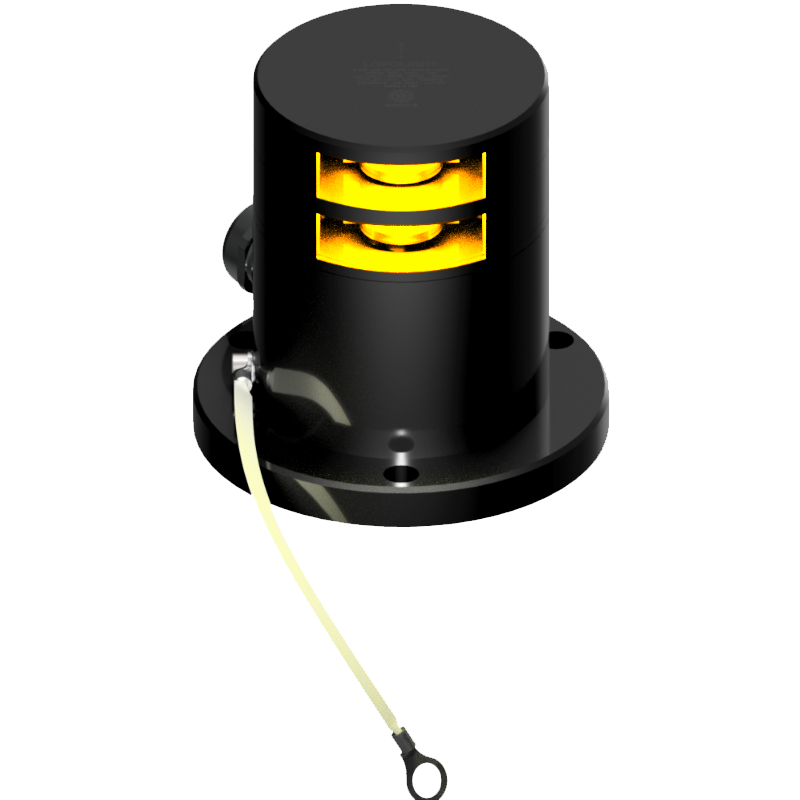

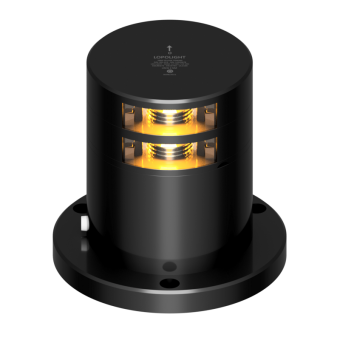

Lopolight 301-113ST-PRO-EX - Navigation Light 3NM 135° Double Yellow Towing, Black, Ex Zone 1&2
Designed for hazardous environments, this Ex-certified navigation light ensures 3NM visibility while meeting ATEX and IECEx standards for Zone 1 and 2 operations.
- Mounting: Horizontally on 400-037-B aluminum base (IP68), cable direction side, including HDPE base plate
- Number: 301-113ST-PRO-EX
- Light Color: Yellow
- Dimensions: Ø92,5mm x 125,5mm (3.6" x 4.9")
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3NM
- Included in Package: 1 navigation light, installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2W
- Current Consumption: 154mA @ 12VDC, 95mA @ 24VDC
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg (49.38 Oz)
- IP Rating: IP68
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- EAN: 5704438040540
- UPC Code: 879343040673
-
