SKU:
BP 301-113ST-B-CD
$ 3.047,47
1-2 weeks delivery time
-
+
The Lopolight 301-113ST-B-CD is a durable double yellow towing light mounted horizontally on an aluminum base with bottom cable direction, suitable for vessels over 50 meters. It provides 3NM visibility, operates at 10-32VDC, and comes with mounting screws, installation guide, and an IP68 rating.
- Description
- Ask a Question
-

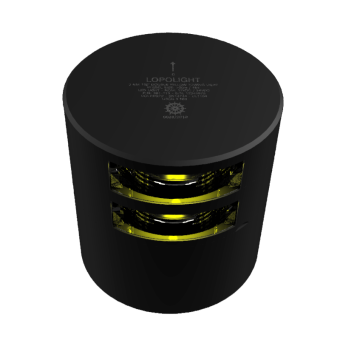

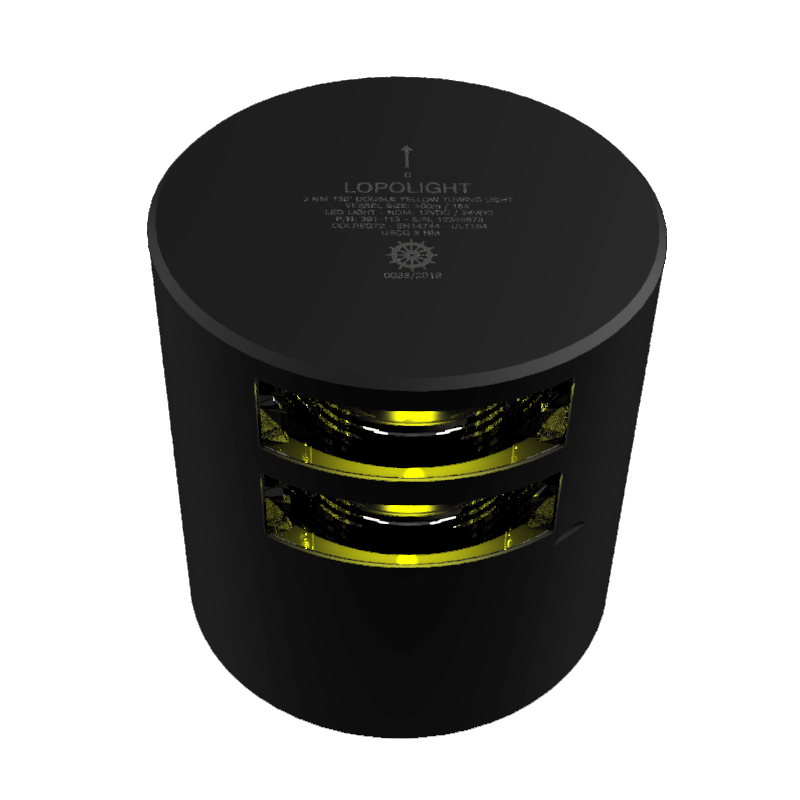

Lopolight 301-113ST-B-CD - Navigation Light 3NM 135° Double Yellow Towing, Black Anodized
This durable navigation light is horizontally mounted on an aluminum base with PE base plate, featuring a bottom cable direction. Designed for vessels over 50M, it delivers certified 3NM visibility in double yellow towing mode.
- Mounting: Horizontal on aluminum base & PE base plate
- Cable Direction: Bottom
- Product Number: 301-113ST-B-CD
- Light Color: Yellow
- Dimensions: Ø92.5mm x 96.5mm (3.6" x 3.8")
- Certification: DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3NM
- Package Includes: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2.2 W
- Connection: Plug connector
- Current Consumption: 154 mA @ 12VDC, 90 mA @ 24VDC
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.4 Kg (49.38 Oz)
-
