SKU:
BP 301-113-PRO-I-EX
$ 2.867,04
1-2 weeks delivery time
-
+
The Lopolight 301-113-PRO-I-EX is an explosion-proof yellow navigation light with ice-class functionality, certified for ATEX Zone 1 & 2. It provides 3NM visibility, mounts horizontally on an aluminum base, operates at 10-32VDC, and includes a de-icing function and installation guide.
- Description
- Ask a Question
-

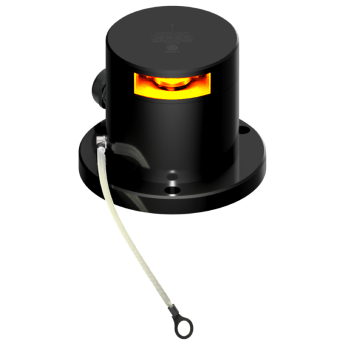

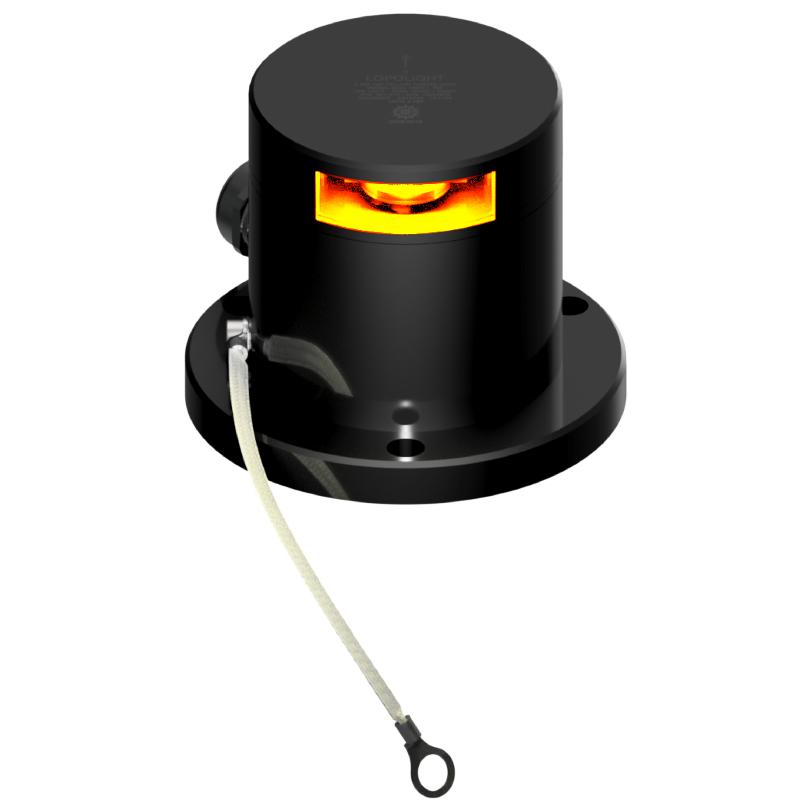

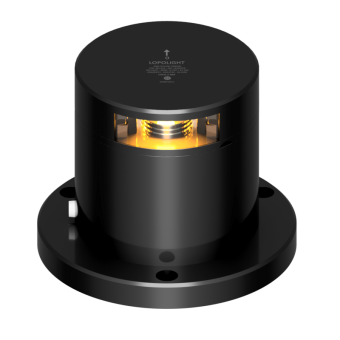

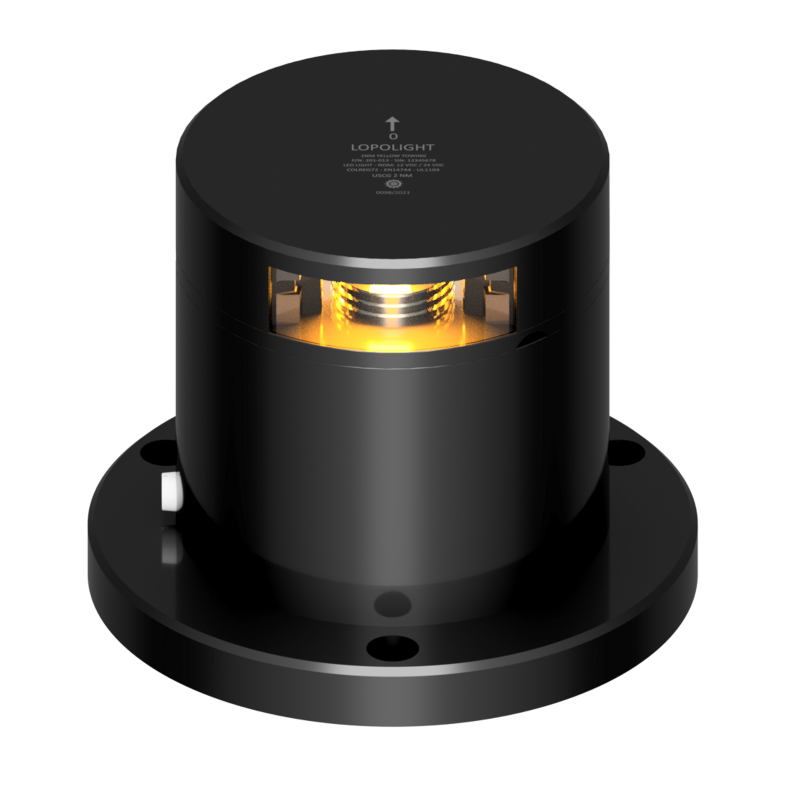

Lopolight 301-113-PRO-I-EX - Navigation Light 3NM 135° Yellow Towing, Black, Ex 1&2, Ice-Class
This explosion-proof navigation light is suitable for ATEX Zone 1 & 2 areas, providing reliable ice-class operation for large vessels.
- Certified for ATEX Zone 1 & 2 usage
- Built-in de-icing function for icy conditions
- Mounted horizontally on 400-037 EX/MIL aluminum base
- Cable exits from the side, includes HDPE base plate
- No cable glands or ground strap included
- Model Number: 301-113-PRO-I-EX
- Light Color: Yellow
- Dimensions: Ø92.5mm x 103.5mm (3.6" x 4")
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Light Intensity: >15cd
- Compliance: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3 nautical miles
- Package Includes: 1 Navigation Light, Installation Guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Current Consumption: 154 mA @ 12VDC, 95 mA @ 24VDC
- Special Attributes: Ice-class defroster, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.5 Kg (52.90 Oz)
- EAN: 5704438040748
- UPC Code: 879343040871
-
