SKU:
BP 301-113-PRO-EX
$ 2.047,89
1-2 weeks delivery time
-
+
The Lopolight 301-113-PRO-EX is a yellow navigation light for explosive environments, certified for ATEX Zone 1 & 2. It provides 3NM visibility and mounts horizontally on an aluminum base, with DNV and other international approvals. The light draws 2W, operates at 10-32VDC, and includes an installation guide.
- Description
- Ask a Question
-

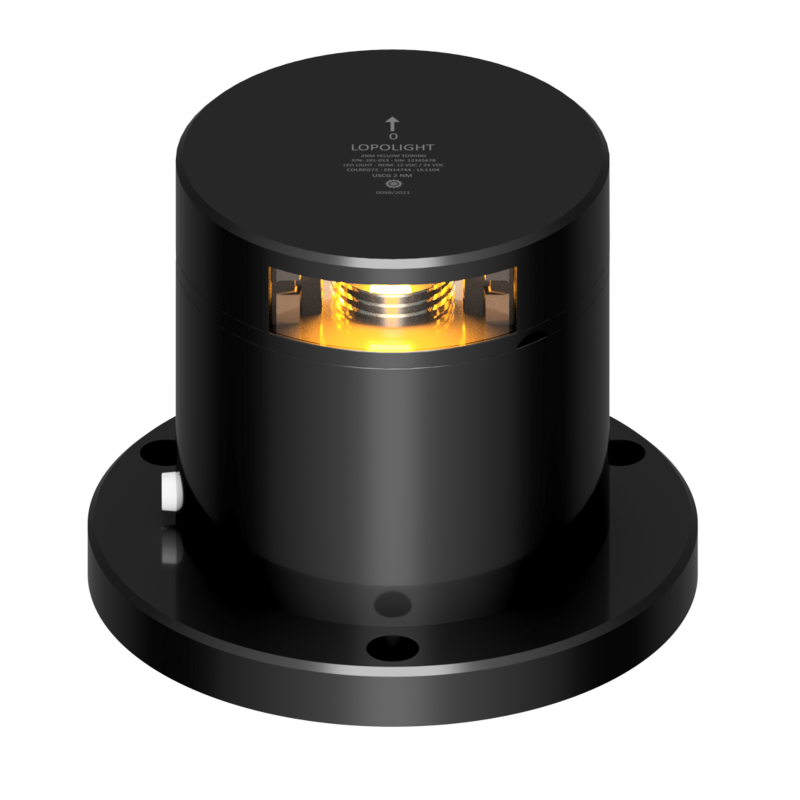

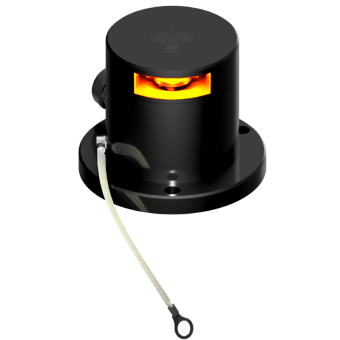

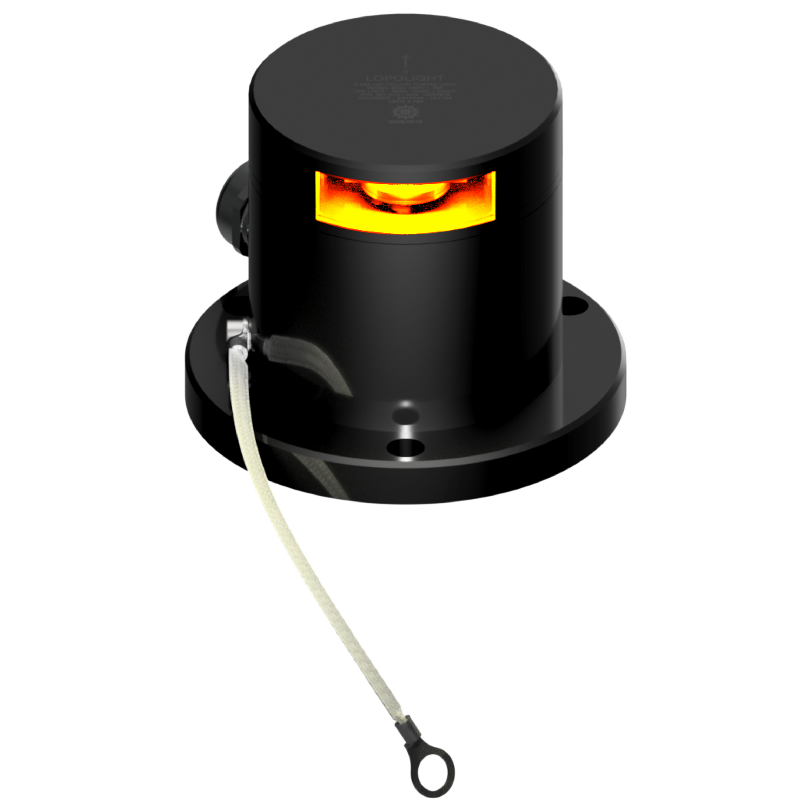

Lopolight 301-113-PRO-EX - Navigation Light 3NM 135° Yellow Towing, Black Anodized, Ex Zone 1&2
Designed for explosive environments, this navigation light is certified for ATEX Zone 1 & 2. It delivers durable yellow illumination with horizontal mounting on an aluminum base, ensuring safety and reliability for large vessels.
- Mounting: Horizontally on 400-037-B aluminum base (IP68), cable direction side, including HDPE base plate. No cable glands or ground strap included
- Number: 301-113-PRO-EX
- Light Color: Yellow
- Dimensions: Ø92,5mm x 103,5mm (Ø3.6" x 4")
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 navigation light, installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 2W
- Current Consumption: 154 mA @ 12VDC, 95 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Connection: Plug connector
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 1.5 Kg / 52.90 Oz
- EAN: 5704438039070
- UPC Code: 879343039202
-
