SKU:
BP 186913A
$ 1.864,12
1-2 weeks delivery time
-
+
The Lopolight 301-113 navigation light is designed for vessels over 50 meters, providing a 3 nautical mile visibility with a 135° yellow towing light. It features horizontal mounting on a silver anodized aluminum and PE base plate, flexible cable exit options, and robust construction with PMMA lens and stainless steel screws. The light operates at 10-32 VDC with a power draw of 2.2 W, is DNV certified, IP68 rated, and includes mounting screws and an installation guide.
- Description
- Ask a Question
-

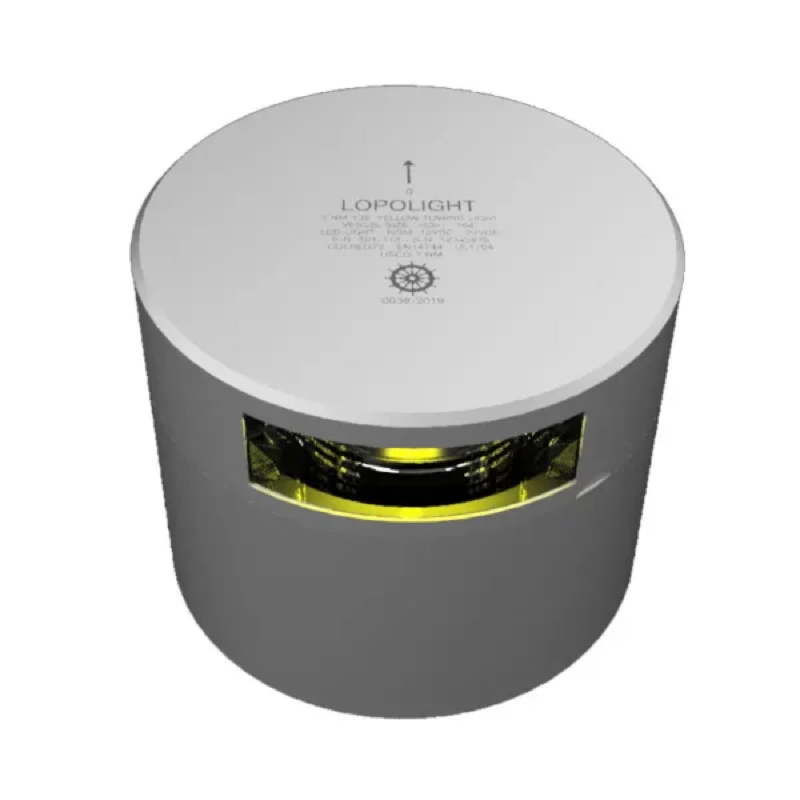

Lopolight 301-113 - Navigation Light 3NM 135° Yellow Towing, Silver Anodized
This navigation light is designed for vessels over 50 meters, providing reliable 3 nautical miles visibility with a 135° yellow towing light. It features a horizontal mounting on an aluminum and PE base plate, with cable exit options on the side or bottom.
- Article Number: 186913A
- Supplier Article Code: 301-113
- EAN Code: 5704438010772
- Light Color: Yellow
- Dimensions: Ø92.5mm x 74.5mm (Ø3.6" x 2.9")
- Intensity: >15 cd
- Visibility: 3 NM
- Certification: DNV certified
- Approvals: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Silver anodized aluminum 25µ, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating Voltage: 10-32 VDC
- Power Draw: 2.2 W
- Current Consumption: 154 mA @ 12VDC, 90 mA @ 24VDC
- Connection: Plug connector
- IP Rating: IP68
- Weight: 1 Kg (35.27 Oz)
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Package Includes: 1 navigation light, 2 mounting screws (M6 x 8 mm), installation guide
-
