SKU:
BP 301-112ST-PRO-I-EX
$ 4.686,75
1-2 weeks delivery time
-
+

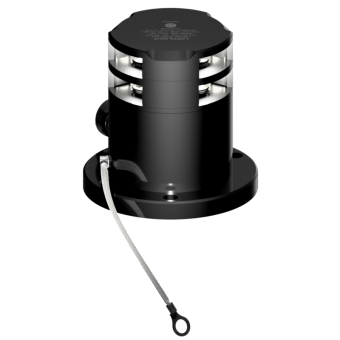

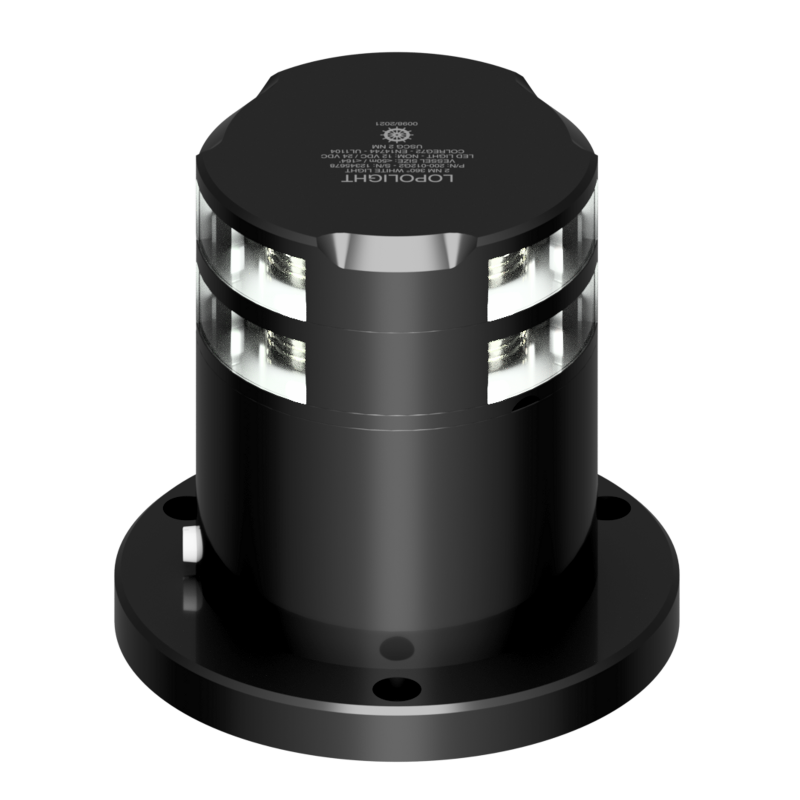

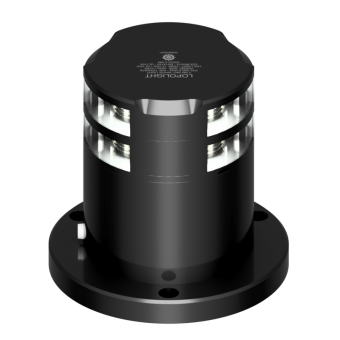

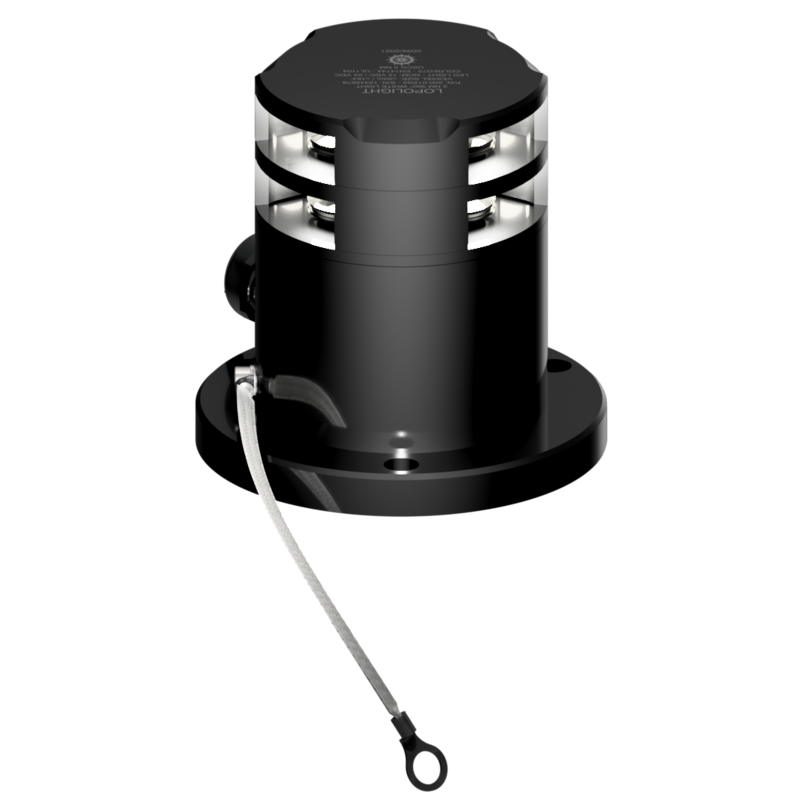

The Lopolight 301-112ST-PRO-I-EX is a double white 360° navigation light with ice-class de-icing, ATEX Zone 1 & 2 certified for vessels over 50 meters. It mounts horizontally on a 400-037 EX/MIL aluminum base, provides 3 nautical mile visibility, >15cd intensity, and operates at 10-32VDC with IP68 protection.
- Description
- Ask a Question
-
Lopolight 301-112ST-PRO-I-EX - Navigation Light 3NM 360° White, Double, Ex Zone 1&2, Ice-Class, Black
Equipped with a built-in de-icing system, this navigation light ensures optimal performance in icy conditions while maintaining full ATEX Zone 1 & 2 compliance.
- Certified for use in ATEX Zone 1 & 2
- Built-in de-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 301-112ST-PRO-I-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040755
- IP rating: IP68
- Power draw: 4 W
- UPC Code: 879343040888
- Connection: Plug connector
- Current consumption: 260 mA @ 12VDC, 176 mA @ 24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Min. feed wire gauge: 0.5mm² AWG22
- Weight: 1.53 Kg / 53.96 Oz
-
