SKU:
BP 301-112-PRO-I-EX
$ 2.578,04
1-2 weeks delivery time
-
+
The Lopolight 301-112-PRO-I-EX is a white 360° navigation light with ice-class de-icing, certified for ATEX Zone 1 & 2. Designed for vessels over 50 meters, it mounts horizontally on a 400-037 EX/MIL aluminum base, offers 3 nautical mile visibility, >15cd intensity, and operates at 10-32VDC with IP68 protection.
- Description
- Ask a Question
-

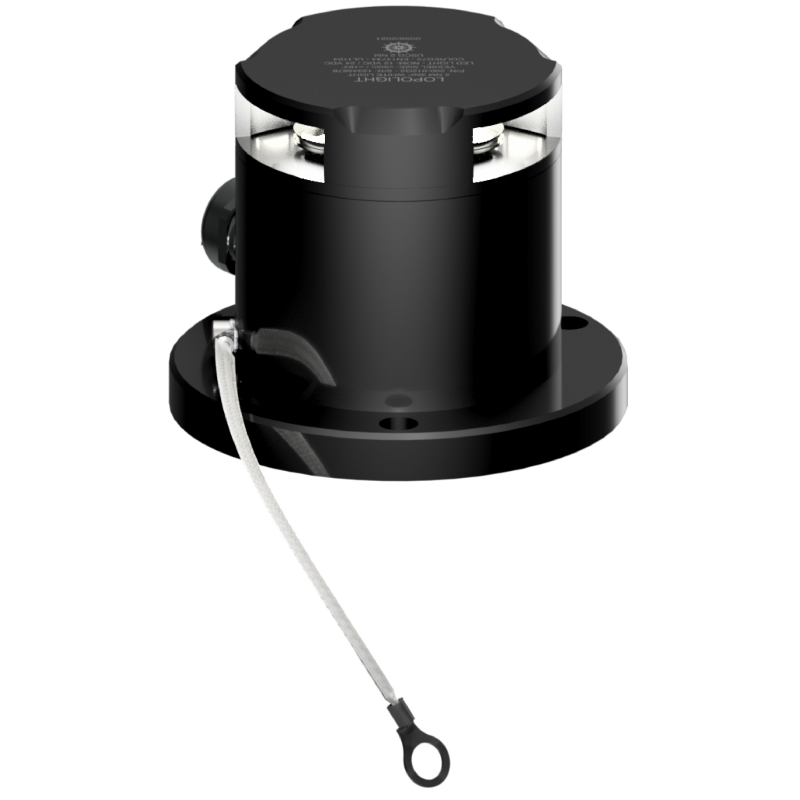

Lopolight 301-112-PRO-I-EX - Navigation Light 3NM 360° White, Single, Ex Zone 1&2, Ice-Class
Reliable navigation for larger vessels, designed for extreme environments with ice-class de-icing and ATEX Zone 1 & 2 certification. Perfect for horizontal installation with robust materials.
- Number: 301-112-PRO-I-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- IP Rating: IP68
- Power Draw: 4 W
- Current Consumption @ 12VDC: 260 mA
- Current Consumption @ 24VDC: 176 mA
- Connection: Plug connector
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Min. Feed Wire Gauge: 0.5mm² AWG22
- Weight: 1.14 Kg / 40.21 Oz
- EAN: 5704438040779
- UPC Code: 879343040901
- Mounting Base: Horizontally on 400-037 EX/MIL aluminum base, cable direction side, includes HDPE base plate (no cable glands or ground strap included)
-
