The Lopolight 301-112-PRO-EX is a high-performance white 360° navigation light for vessels over 50 meters, certified for ATEX Zone 1 & 2. It mounts horizontally on a 400-037-B aluminum base, provides >15cd intensity, 3 nautical mile visibility, and operates at 10-32VDC with IP68 protection.
- Description
- Ask a Question
-

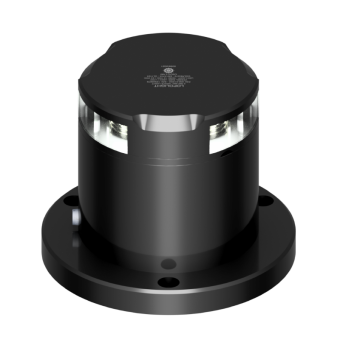

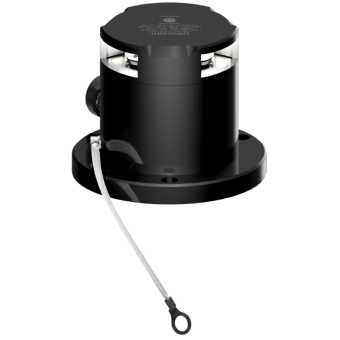

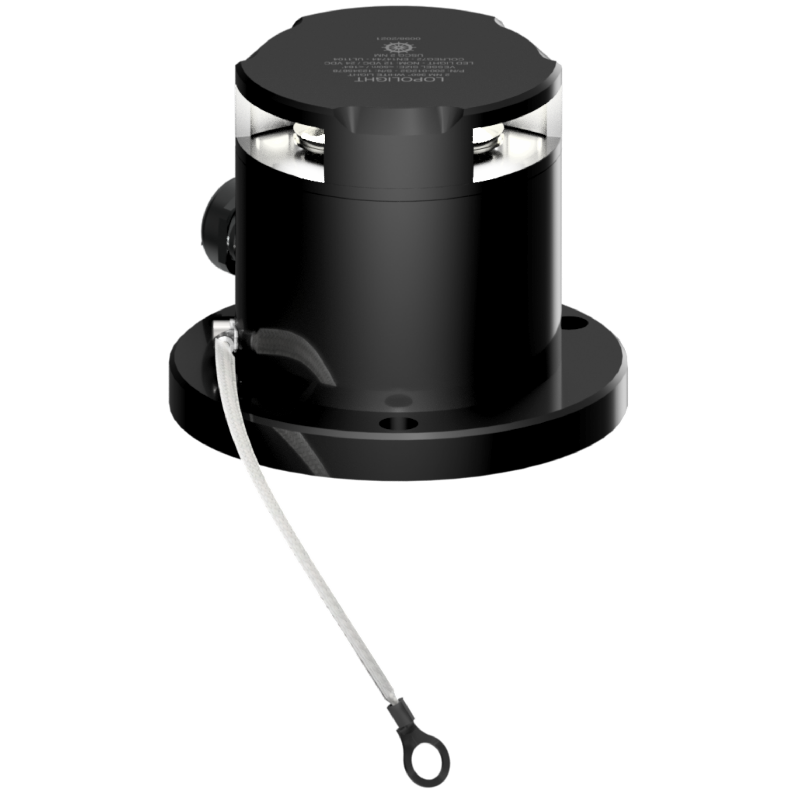

Lopolight 301-112-PRO-EX - Navigation Light 3NM 360° White, Single, Ex Zone 1&2
This high-performance navigation light provides full 360° white illumination for vessels over 50 meters, certified for hazardous environments in ATEX Zone 1 & 2. Designed for horizontal mounting, it offers reliable visibility and robust construction for professional maritime use.
- Number: 301-112-PRO-EX
- Light Color: White
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 4 W
- Current Consumption: 260 mA @ 12VDC, 176 mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- IP Rating: IP68
- Weight: 1.14 Kg / 40.21 Oz
- EAN: 5704438039889
- UPC Code: 879343040017
- Mounting Base: 400-037-B aluminum base, cable direction side, HDPE base plate included (no cable glands or ground strap)
-
