SKU:
BP 301-112-PRO-EX 180
$ 1.841,44
1-2 weeks delivery time
-
+
The Lopolight 301-112-PRO-EX 180 is a 180° white navigation light, ATEX Zone 1 & 2 certified for vessels over 50 meters. It mounts horizontally on a 400-037-B aluminum base, delivers >15cd intensity, 3 nautical mile visibility, and operates at 10-32VDC with IP68 rating.
- Description
- Ask a Question
-

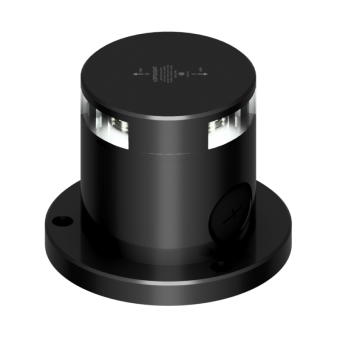

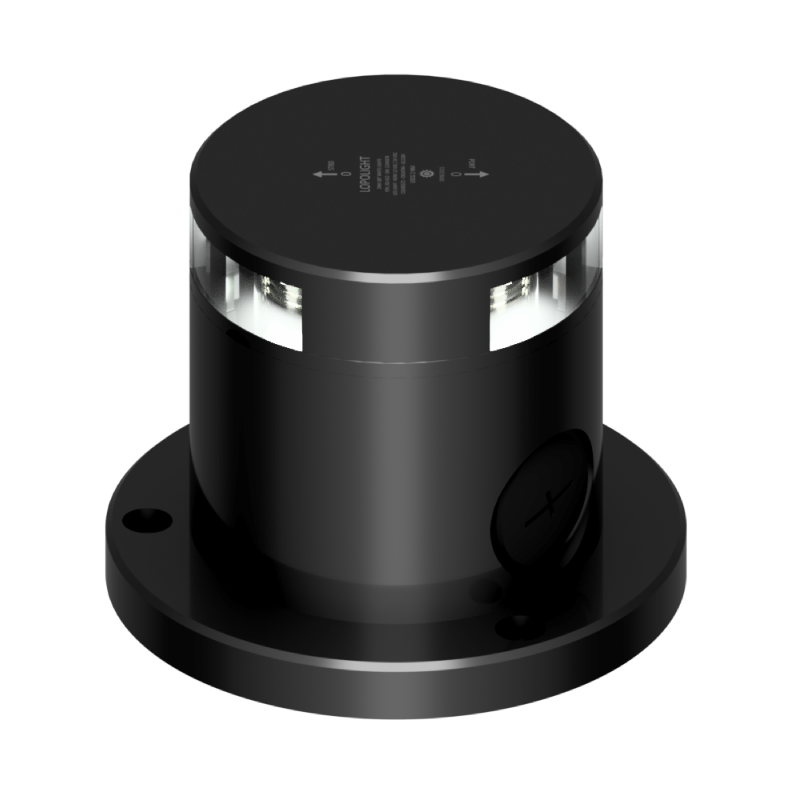

Lopolight 301-112-PRO-EX 180 - Navigation Light 3NM 180° White, Single, Ex Zone 1&2
Engineered for half-circle (180°) coverage, this navigation light is suitable for vessels over 50 meters, providing high visibility and ATEX Zone 1 & 2 certification. Horizontal mounting ensures optimal placement with durable materials for maritime conditions.
- Number: 301-112-PRO-EX 180
- Light Color: White
- Dimensions (metric): Ø92,5mm x 103,5mm
- Dimensions (imperial): Ø3.6" x 4"
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 3 W
- Current Consumption: 240 mA @ 12VDC, 122 mA @ 24VDC
- Connection: Plug connector
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² AWG22
- IP Rating: IP68
- Weight: 1.14 Kg / 40.21 Oz
- EAN: 5704438040861
- UPC Code: 879343040994
- Mounting Base: 400-037-B aluminum base, cable direction side, HDPE base plate included
-
