SKU:
BP 301-109ST-WH
$ 2.933,33
1-2 weeks delivery time
-
+
The Lopolight 301-109ST-WH is a red port navigation light with a white ceramic finish, designed for vessels over 50 meters. It mounts horizontally with cable routed downwards, includes a standard black PE baseplate, and operates at 10-32VDC. With visibility up to 3 nautical miles and IP68 protection, it combines durability with reliable performance.
- Description
- Ask a Question
-

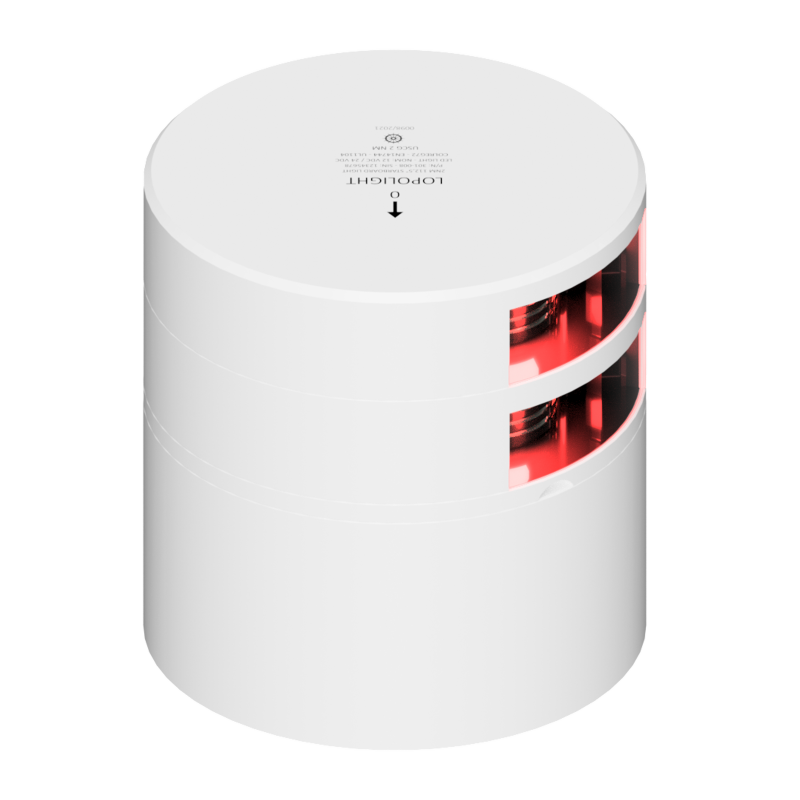

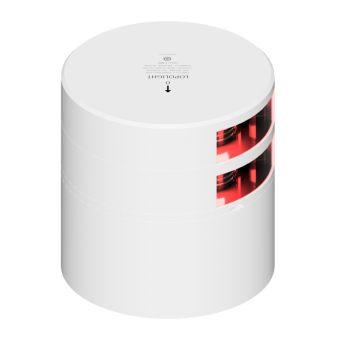

Lopolight 301-109ST-WH - Navigation Light 3NM 112,5° Red, Port, Double, White Ceramic Coated
This navigation light features a sleek white ceramic finish and robust construction, designed for vessels over 50 meters to ensure reliable visibility at sea.
- White ceramic finish with aluminium mount base
- Cable routed downwards only
- Standard black PE baseplate included; optional white ceramic coated baseplate
- Number: 301-109ST-WH
- Light Color: Red
- Dimensions: Ø92,5mm x 96,5mm (3.6" x 3.8")
- Certification: Wheelmarked by DNV
- Intensity: >15cd
- Approved to COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Package includes: 1 navigation light, 2 mounting screws (M6 * 8 mm), installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic coated white aluminum, PMMA lens, A4 stainless steel screws, epoxy, polyurethane
- Operating voltage: 10-32VDC
- EAN: 5704438039513
- IP rating: IP68
- Power draw: 3 W
- UPC Code: 879343039646
- Connection: Plug connector
- Current consumption: 153 mA @ 12VDC, 92 mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.34 Kg (47.26 Oz)
-
