SKU:
BP 301-109ST-PRO-I
$ 3.220,01
1-2 weeks delivery time
-
+
The Lopolight 301-109ST-PRO-I is a high-performance red port navigation light with built-in de-icing, suitable for vessels over 50 meters. It mounts horizontally on the 400-037 POM base, includes HDPE base plate, and operates at 20-32VDC. Certified by DNV and providing visibility up to 3 nautical miles, it is built to withstand temperatures from -60°C to 55°C.
- Description
- Ask a Question
-

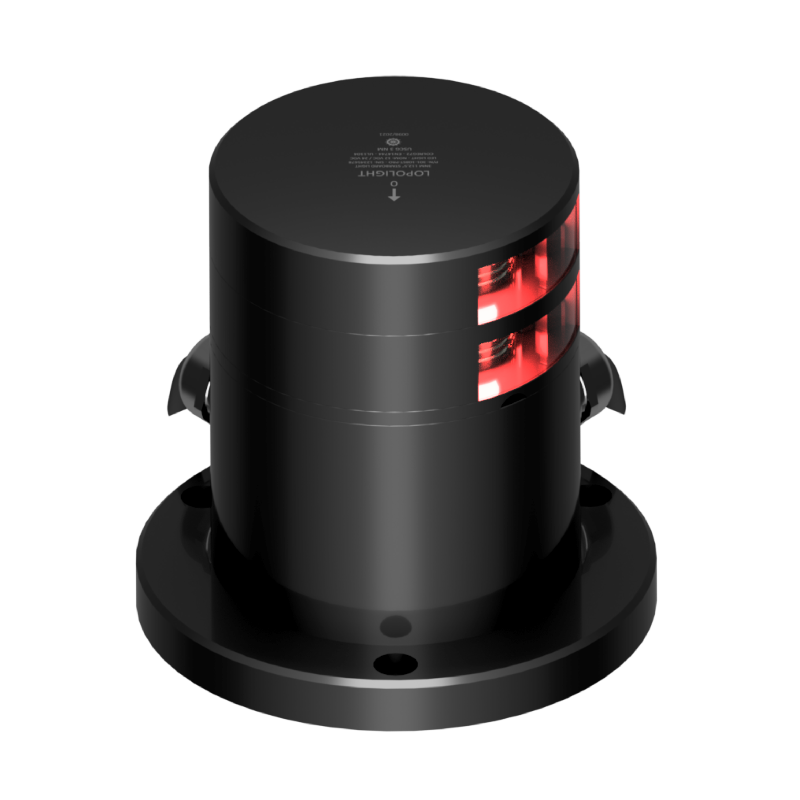

Lopolight 301-109ST-PRO-I - Navigation Light 3NM 112,5° Red, Port, Double, Black Anodized, Ice-Class
This high-performance navigation light provides reliable visibility for vessels over 50 meters and includes advanced de-icing functionality for icy conditions.
- Built-in De-icing function
- Horizontally mounted on 400-037 POM base (IP68)
- Cable direction side
- Includes HDPE base plate
- Quality cable glands for 7-13mm (9/32"-1/2") cable diameter
- Number: 301-109ST-PRO-I
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Visibility: 3nm
- Included in package: 1 Navigation light, 2 Mounting screws (M6 x 8 mm), Installation guide
- Operating temperature: -60°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 20-32VDC
- EAN: 5704438014114
- IP rating: IP68
- Power draw: 2.2 W
- UPC Code: 879343014117
- Connection: Plug connector
- Current consumption: 153 mA @ 12VDC, 92 mA @ 24VDC
- Vessel size: Over 50M
- Minimum feed wire gauge: 1.5mm² (AWG18)
- Weight: 1.4 Kg / 49.38 Oz
-
Ask a Question
