SKU:
BP 301-109ST-PRO-I-EX
$ 4.101,39
1-2 weeks delivery time
-
+
The Lopolight 301-109ST-PRO-I-EX is a red port navigation light with built-in de-icing, ATEX and IEC Ex Zone 1 & 2 certified for explosive atmospheres. Suitable for vessels over 50 meters, it mounts horizontally on the 400-037 EX/MIL aluminum base, offers visibility up to 3 nautical miles, and operates from 10-32VDC with IP68 protection.
- Description
- Ask a Question
-

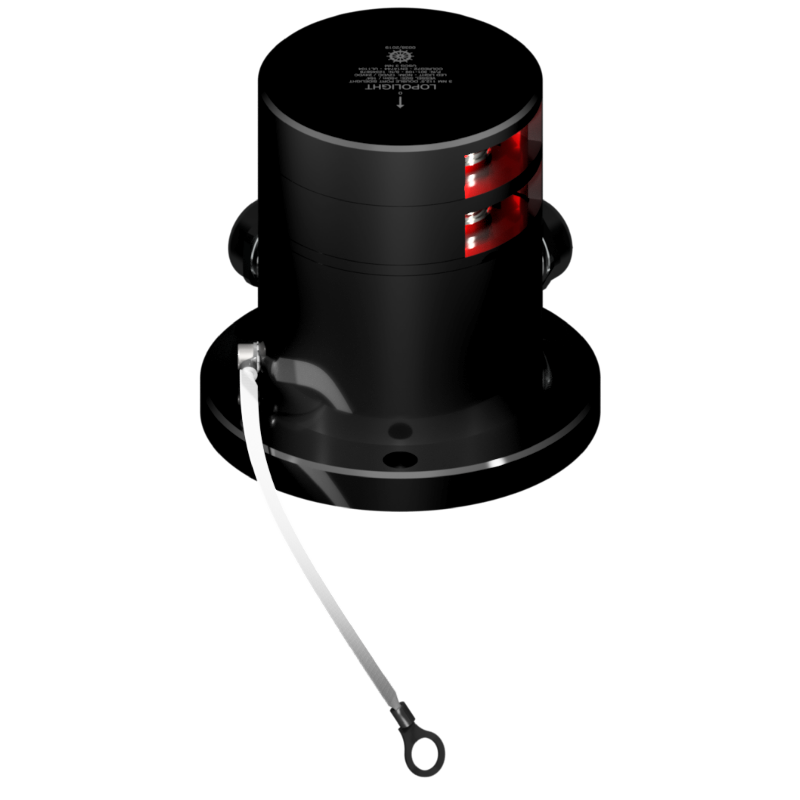

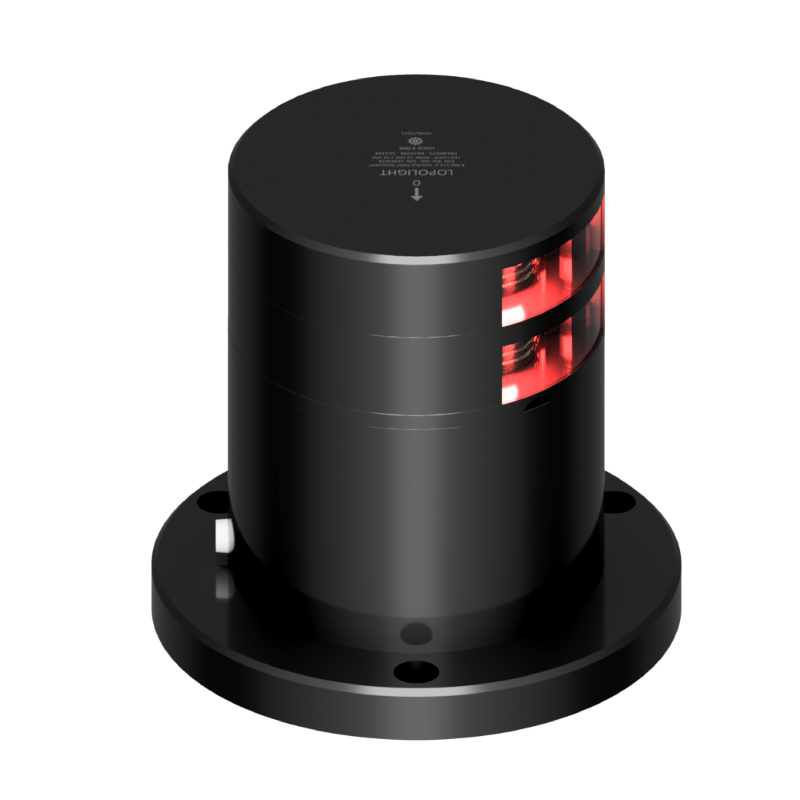

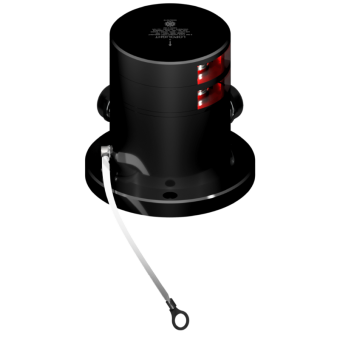

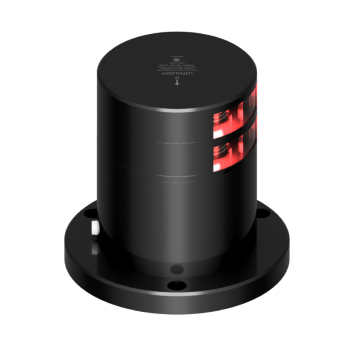

Lopolight 301-109ST-PRO-I-EX - Navigation Light 3NM 112,5° Red, Port, Double, Ex Zone 1&2, Ice-Class
Designed for explosive atmospheres, this navigation light ensures safety and performance for vessels over 50 meters, with full ATEX and IEC Ex certifications.
- Certified for ATEX Zone 1 & 2 use
- Built-in De-icing function
- Horizontally mounted on 400-037 EX/MIL aluminum base
- Cable direction side, includes HDPE base plate
- No cable glands or ground strap included
- Number: 301-109ST-PRO-I-EX
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 125,5mm
- Dimensions (imperial): Ø3.6" x 4.9"
- Certification: Certified by DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3nm
- Included in package: 1 Navigation light, Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- EAN: 5704438040694
- IP rating: IP68
- Power draw: 2 W
- UPC Code: 879343040826
- Connection: Plug connector
- Current consumption: 153 mA @ 12VDC, 95 mA @ 24VDC
- Special Attributes: Ice-class defroster included, IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel size: Over 50M
- Minimum feed wire gauge: 0.5mm² (AWG22)
- Weight: 1.62 Kg / 57.14 Oz
-
