SKU:
BP 301-109ST-PRO-EX
$ 2.929,57
1-2 weeks delivery time
-
+
The Lopolight 301-109ST-PRO-EX is a black port navigation light for hazardous environments, ATEX certified for Zone 1 & 2. It offers high intensity (>15cd), robust construction, and full certifications including DNV, COLREG72, and IEC 60945. Designed for vessels over 50 meters, it mounts horizontally on the 400-037-B aluminum base and operates from 10-32VDC.
- Description
- Ask a Question
-

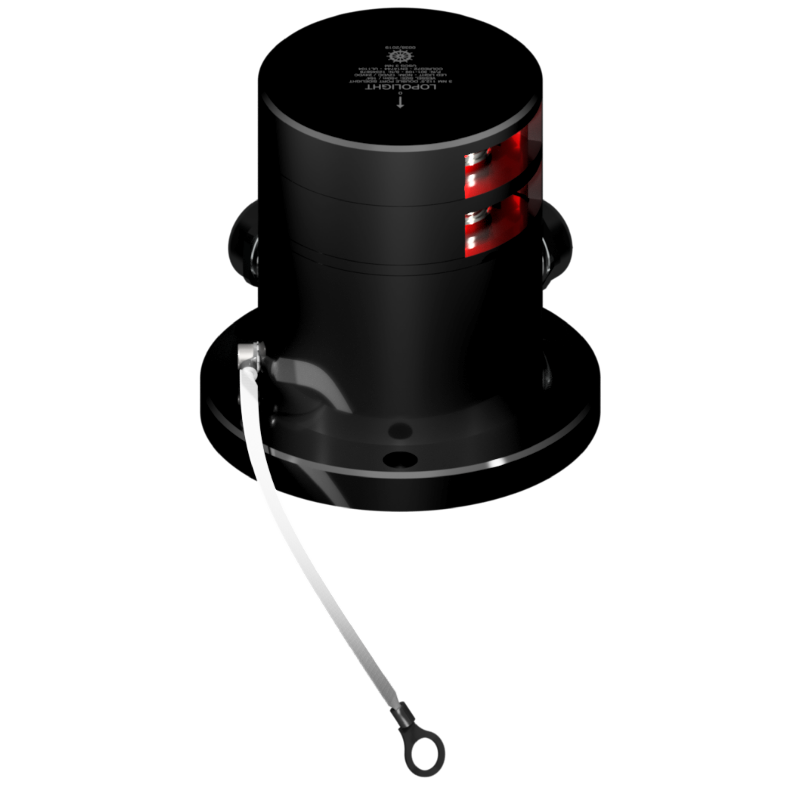

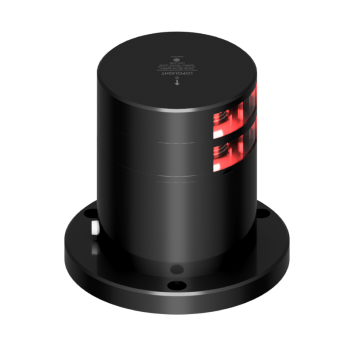

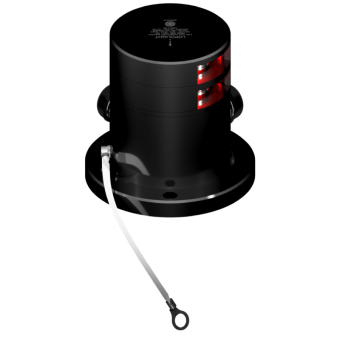

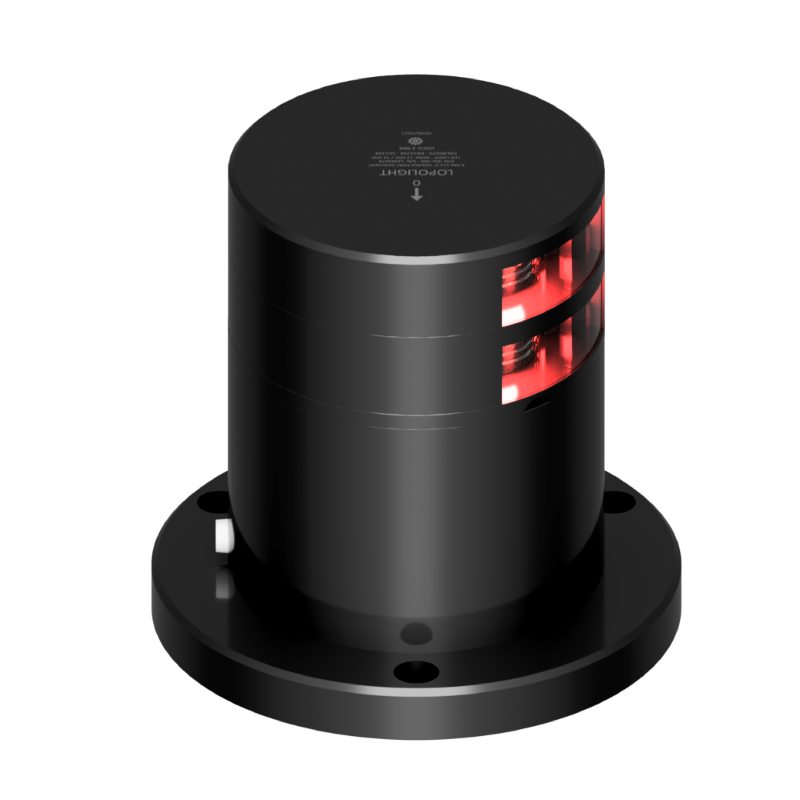

Lopolight 301-109ST-PRO-EX - Navigation Light 3NM 112,5° Red, Port, Double, Black, Ex Zone 1&2
Designed for hazardous environments, this black port navigation light is ATEX certified for Zone 1 & 2. It offers robust construction, high intensity, and reliable performance for vessels over 50 meters.
- Certification: DNV, Dancert (Ex mb eb IIB T5 Gb), ExVeritas (PQAN/UKQAN/QAR)
- Mounting: Horizontal on 400-037-B aluminum base (IP68)
- Light Color: Red
- Dimensions: Ø92,5mm x 125,5mm (3.6"" x 4.9"")
- Intensity: >15cd
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, BV, RINA, LR, MCA, ATEX 2014/34/EU, IEC 60079-0/7/18, UK Ex
- Visibility: 3 nautical miles
- Included in Package: 1 Navigation light, Installation guide
- Operating Temperature: -25°C to 55°C
- Materials: Black hard coat anodized aluminum 50µ, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power Draw: 2 W
- Connection: Plug connector
- Current Consumption: 153 mA @ 12VDC, 95 mA @ 24VDC
- Special Attributes: IEC Ex Zone 1 certified, ATEX Zone 1 certified
- Vessel Size: Over 50M
- Minimum Feed Wire Gauge: 0.5mm² (AWG22)
- Weight: 1.63 Kg (57.49 Oz)
- EAN: 5704438039056
- UPC Code: 879343039189
-
