SKU:
BP 301-109-WH
$ 1.843,78
1-2 weeks delivery time
-
+
The Lopolight 301-109-WH is a red port light with white ceramic-coated aluminum construction, 3NM visibility, horizontal mounting, IP68 rating, and included installation accessories, suitable for vessels over 50 meters.
- Description
- Ask a Question
-

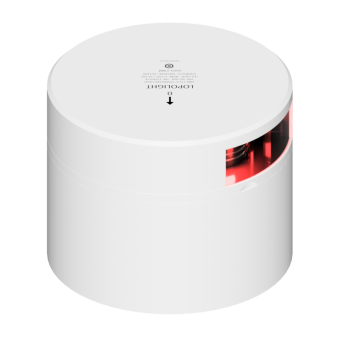

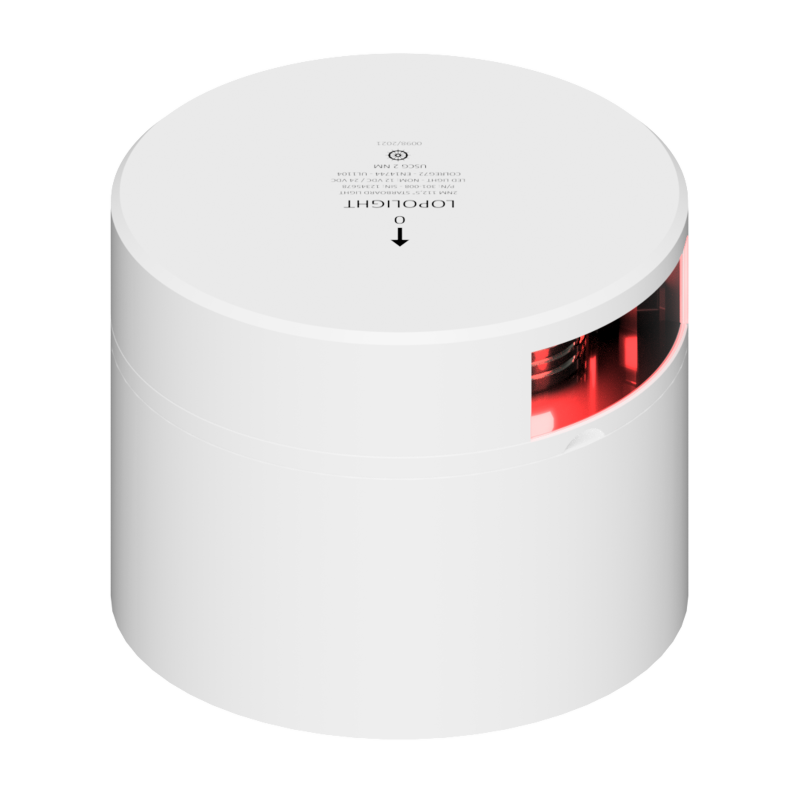

Lopolight 301-109-WH - Navigation Light 3NM 112,5° Red, Port, White Ceramic Coated
This navigation light features a white ceramic-coated finish and is suitable for horizontal mounting. It provides 3NM visibility with a durable construction for long-lasting performance on vessels over 50 meters.
- White ceramic-coated finish
- Aluminium mount base, white
- Cable exits downward
- Standard black PE baseplate included; optional white ceramic-coated baseplate available
- Number: 301-109-WH
- Light Color: Red
- Dimensions (metric): Ø92,5mm x 74,5mm
- Dimensions (imperial): Ø3.6" x 2.9"
- Certification: Wheelmarked based on DNV
- Approved to: COLREG72, EN14744, IEC 60945, IACS E10, USCG, ABS, M.E.D., DNV, LR
- Intensity: >15cd
- Visibility: 3nm
- Included in package: 1 Navigation light, 2 Mounting screws (M6 * 8 mm), Installation guide
- Operating temperature: -25°C to 55°C
- Mounting: Horizontal
- Materials: Ceramic-coated white aluminum, PMMA lens, A4 stainless steel screws, Epoxy, Polyurethane
- Operating Voltage: 10-32VDC
- Power draw: 3 W
- Connection: Plug connector
- Current consumption: 153 mA @ 12VDC, 92 mA @ 24VDC
- Minimum feed wire gauge: 0.5mm² AWG22
- Weight: 1.01 Kg (35.62 Oz)
- EAN: 5704438039506
- UPC Code: 879343039639
-
